Industrial Shelving

Clip Shelving, Wide-Span and Pallet Racking for Heavy-Duty Applications

Offers the versatility and heavy load capacities needed for bulk storage and warehouse applications

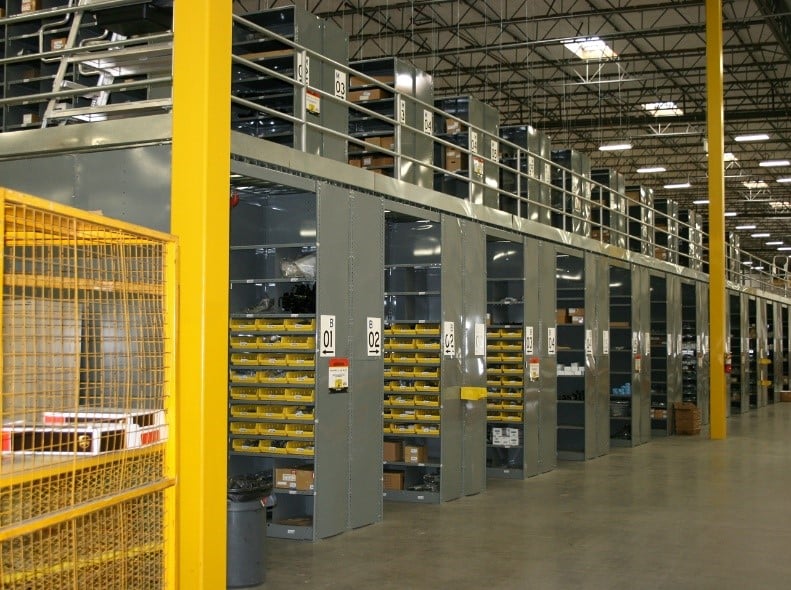

Multilevel Clip `Shelving` (1m)

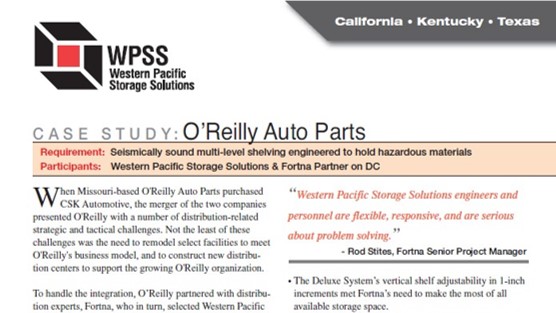

Going vertical 20 feet with mezzanine and clip shelving solved a storage crisis

“Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed cursus et nisi at vestibulum. Quisque et euismod ligula, semper facilisis elit. Nunc eleifend euismod elementum. Morbi rutrum erat vel libero viverra elementum. Donec accumsan tincidunt tellus et gravida.”

Mark O’Marketing
VP Sales & Marketing, Xappp

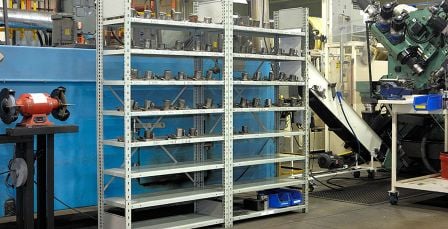

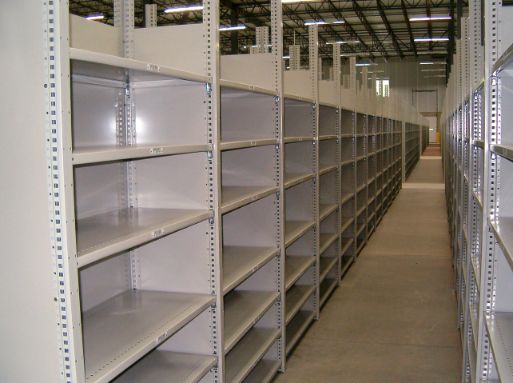

Clip Shelving

An industrial type shelving that is:

Extremely versatile
Sturdy and quick assembly
Has a vast range of accessories
Can combine with Mini-Racking to expand your storage options for multiple uses

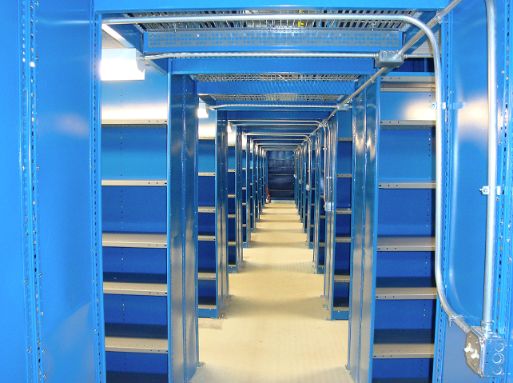

Clip shelving is utilized often in mezzanine applications

APPLICATIONS:

Warehouses
Parts Departments
Maintenance Workshops
Distribution Centers

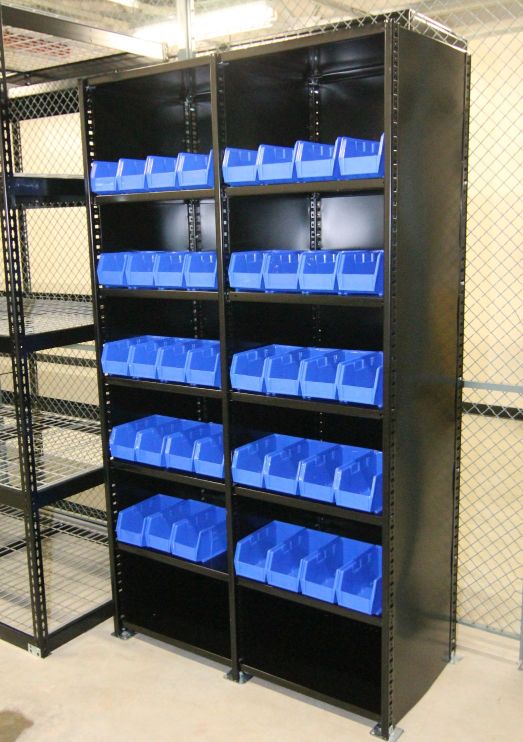

Clip Shelving-Camp Pendleton Clip 077-compressed

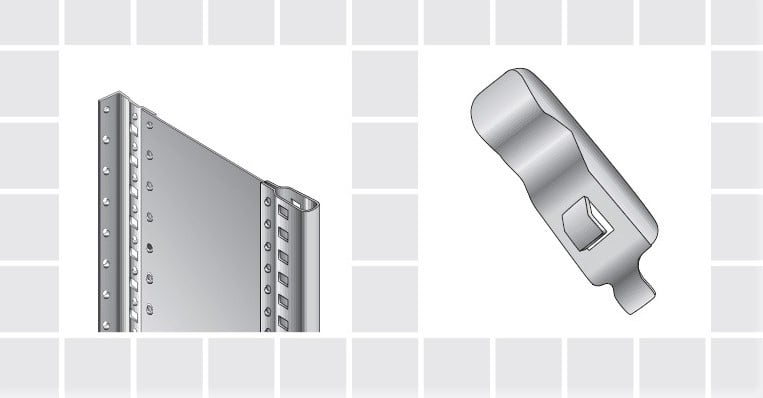

EASY ASSEMBLY

The name “Clip Shelving” is due to the compression clip that allows for easy assembly

The two extrusions on the clip fit firmly into the post slots and provide a secure fit for the shelves

Clips are formed of heavy gauge steel for maximum weight bearing capability

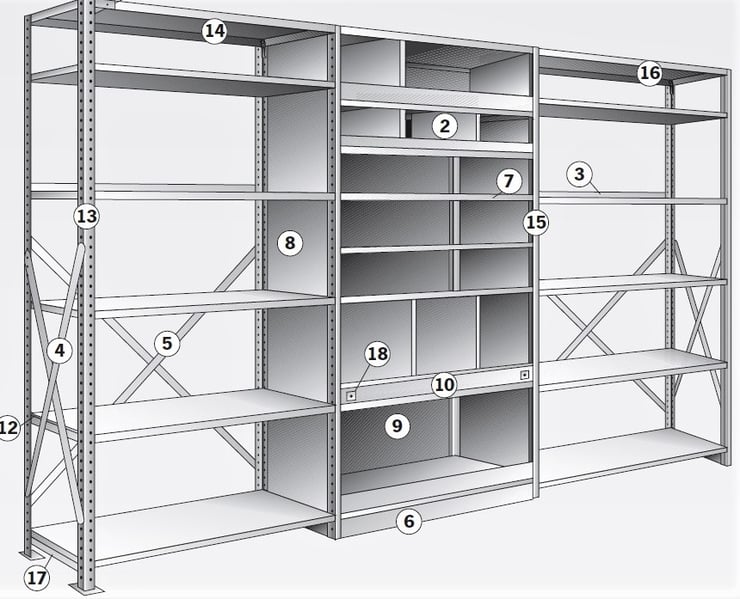

CONFIGURATIONS

The most common configurations for clip shelving are:

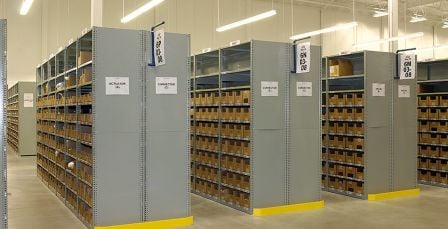

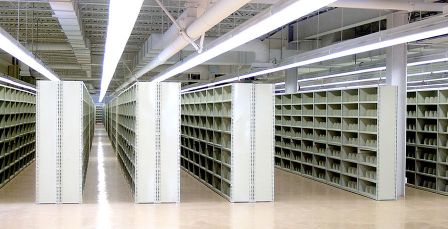

Open Shelving Units
Closed Shelving Units
Bin Models

LOAD CAPACITIES:

The load capacity per shelf is largely dependent on the shelf dimension and gauge of steel

The overall load capacity range for clip shelving is 250 to 1900 pounds per shelf

DIMENSIONS:

Heights	3 feet to 22 feet
Depths	12", 15", 18", 24", 30", 36"
Widths	30”, 36”, 42”, 48”

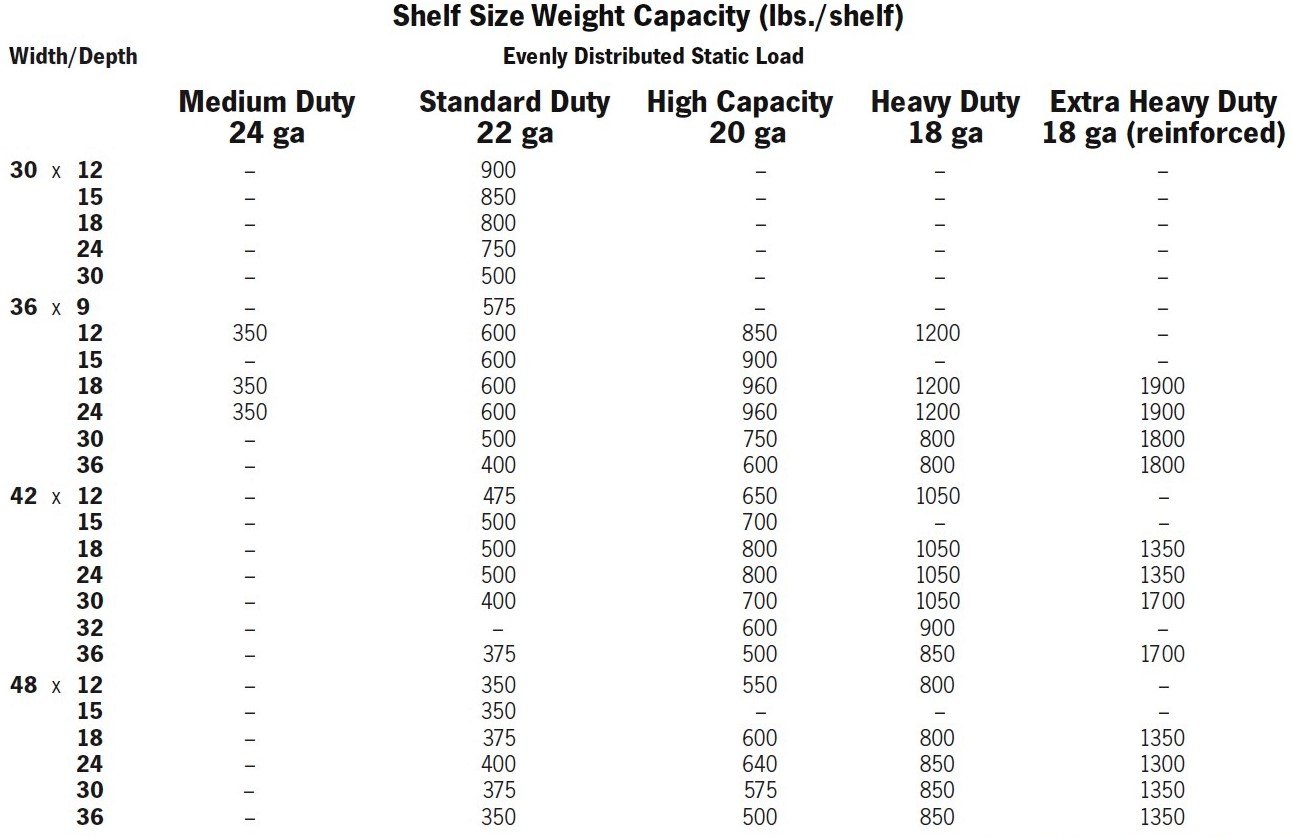

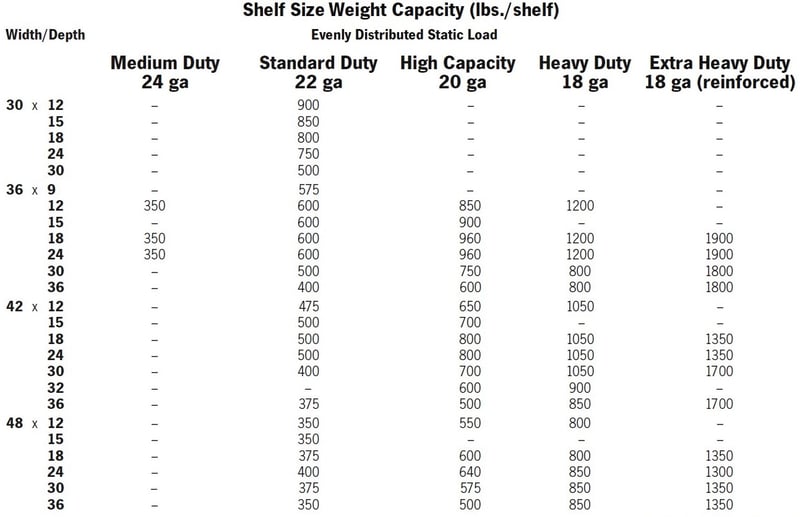

See chart at left for exact specifications

ACCESSORIES:

Choose from a variety of accessories to enhance your storage:

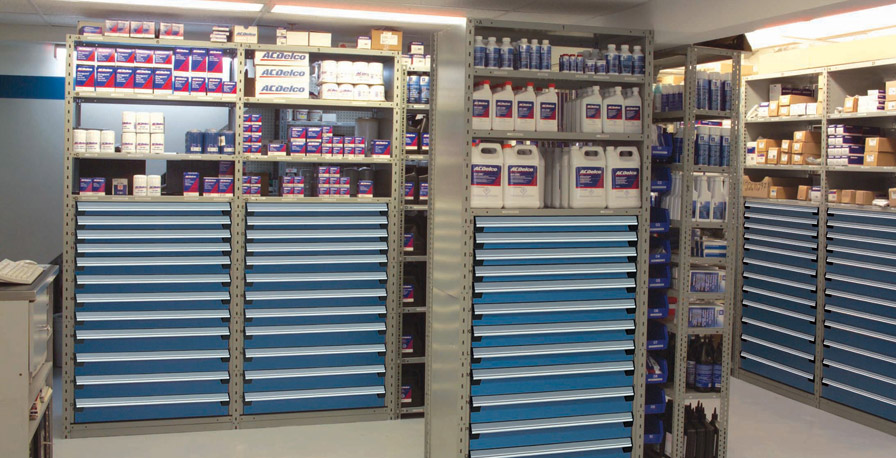

Modular Drawers and Roll-out Shelf
Hinged solid or polycarbonate doors
Flipper Doors
Locking mechanisms
Dividers and Dividing Rods
Rails and spool supports
Adhesive or Magnetic label holders
Solid or Perforated finishing panels for use with light duty hooks
Utility panel for use with hooks, supports, tool holders and small shelf
Louvered panel for hanging bins
LED light

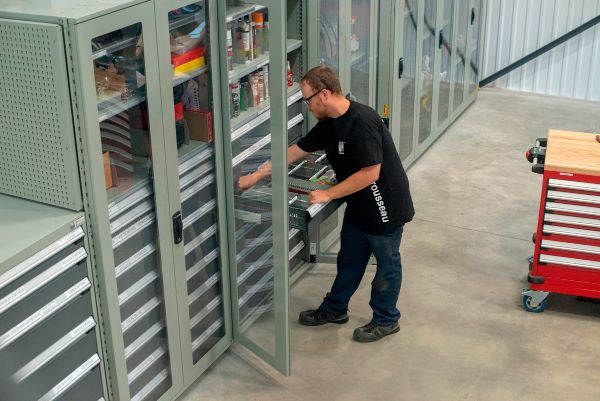

Clip Shelving w-glass doors-ROUSSEAU_02_QC_MAN-compressed

WIDE-SPAN SHELVING

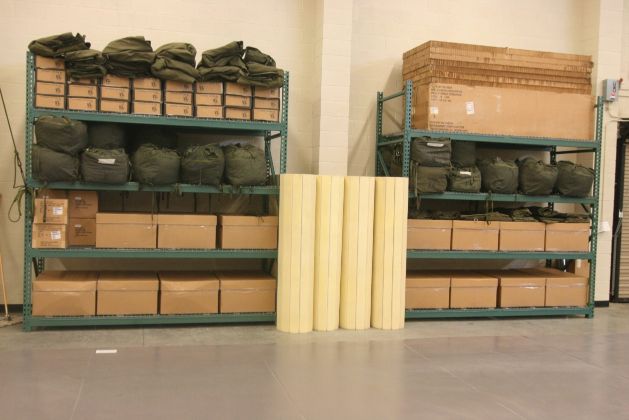

Wide span shelving, also known as mini-racking, uses steel beams to support decking over longer shelf spans in order to hold extra wide, heavy items

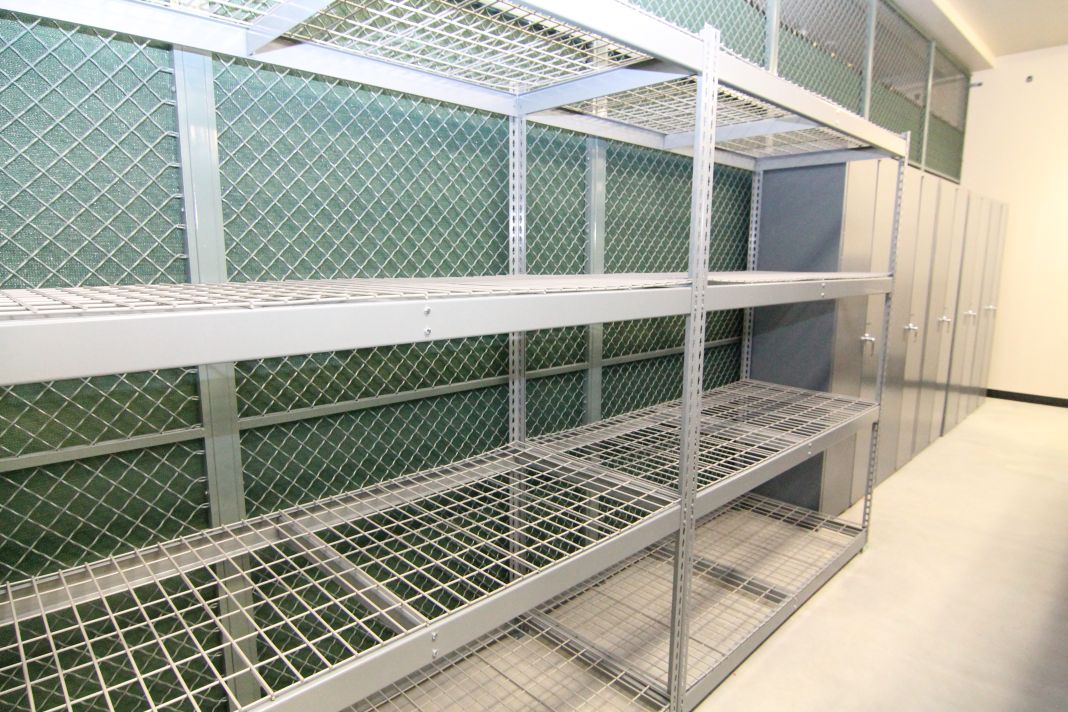

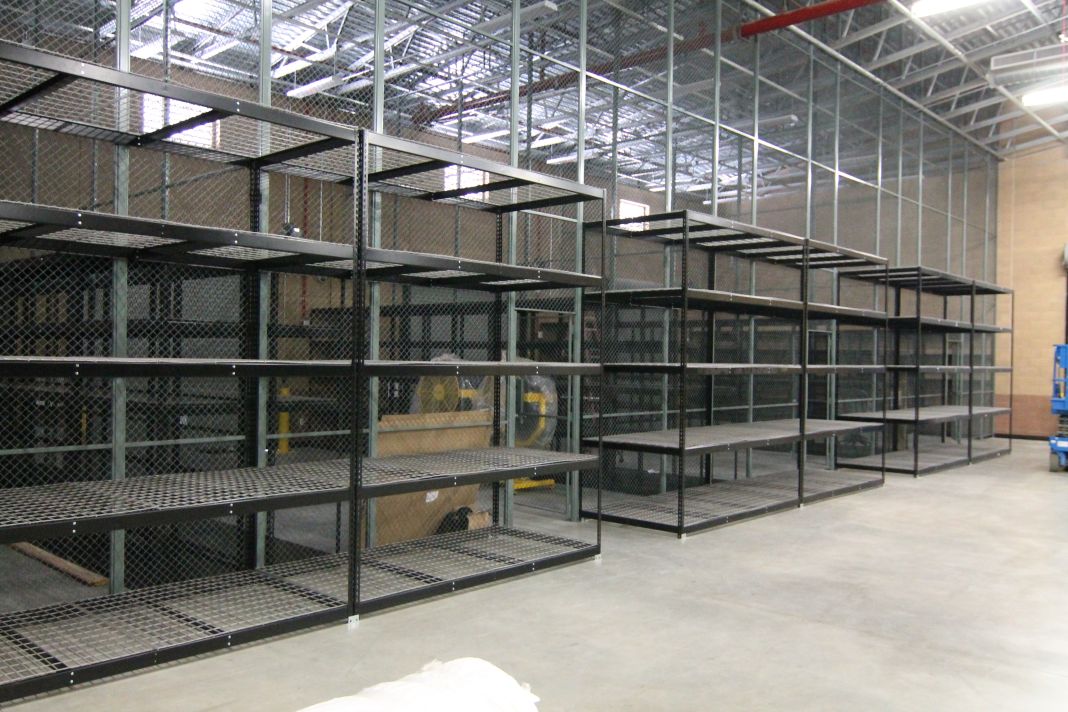

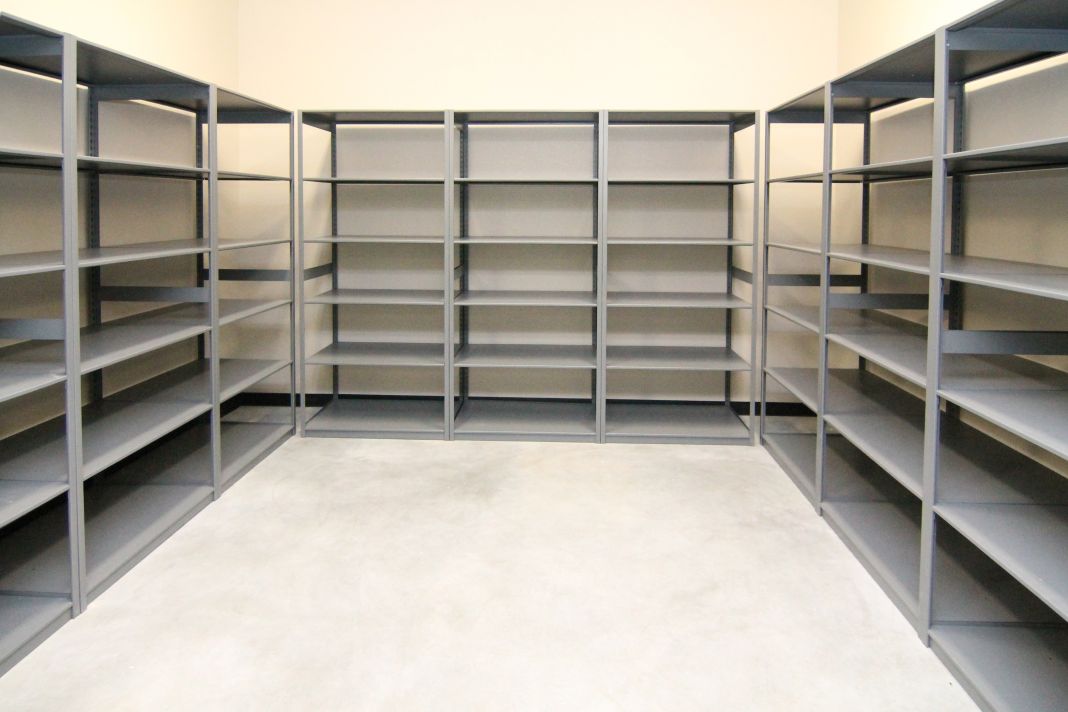

Wide-span-Camp Pendleton 2013-04-09 060-compressed

DECKING FOR WIDE-SPAN SHELVING:

The beams on racking can be accessorized with a variety of decking types:

Wire deck
Wood decking
Solid metal decking
Corrugated decking
Gravity flow

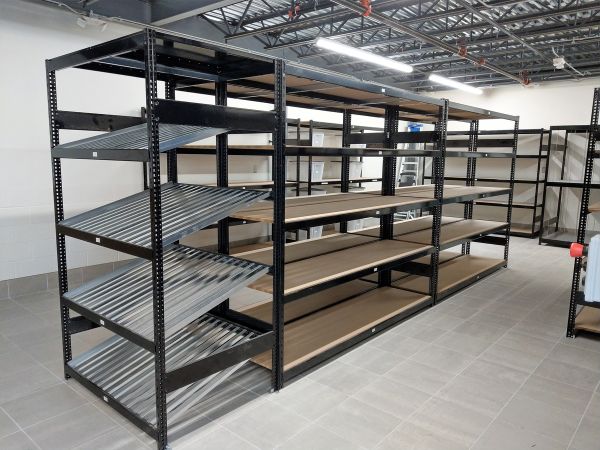

Rousseau-wide-span-FirstChoiceAutomotive_NJ_AUTO_01-compressed

APPLICATIONS:

Designed for intensive use, mini-racking systems are ideal for:

Warehouses
Repair Shops
Distribution Centers
Automotive Parts Departments

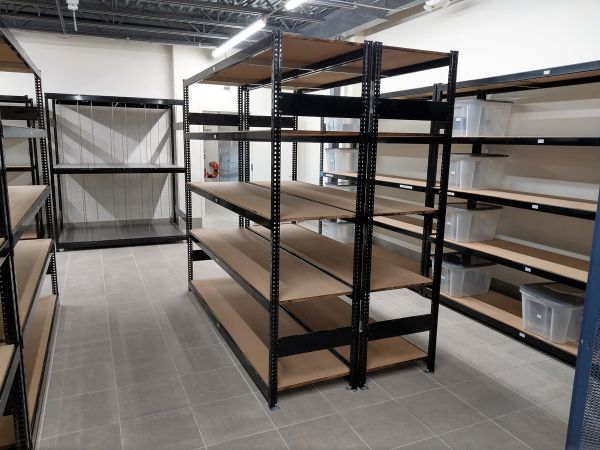

Rousseau-mini-racking-FirstChoiceAutomotive_NJ_AUTO_03-compressed

DIMENSIONS:

Heights	3 feet to 20 feet, approx.
Depths (in inches)	15”, 16”, 18”, 24”, 30”, 32”, 36”, 48”
Widths (in inches)	36”, 42”, 48”, 60”, 66”, 72”, 96”

LOAD CAPACITY:

The load capacity per shelf is largely dependent on the shelf dimension and gauge of steel

The overall load capacity range for mini-racking is 400 lbs to 1500 pounds per level

Note: Wide-span shelving can be stacked on top of each other using a catwalk or mezzanine system

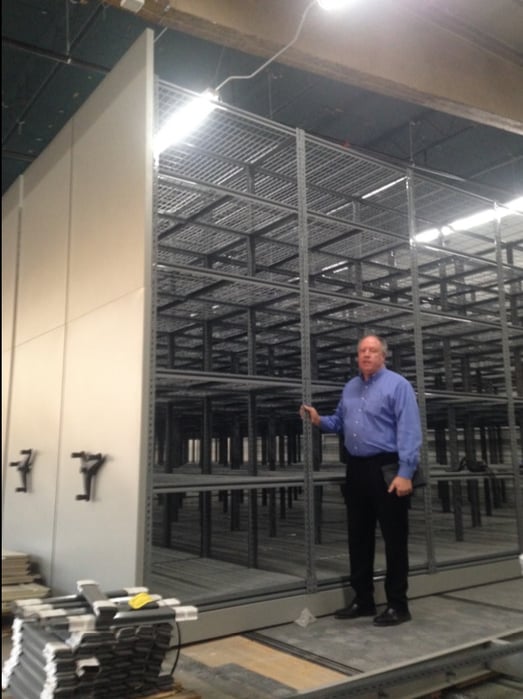

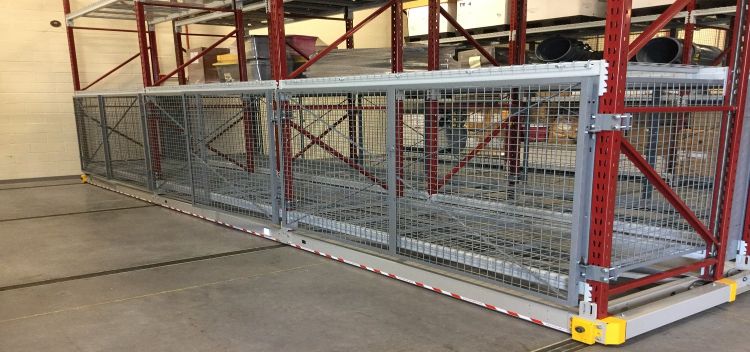

Mobile Racking

Pallet racking can be placed on mobile carriages for additional storage density

Shelving units move either mechanically or electronically opening up an aisle way to access materials

Vertical Carousel

Another option for bulk storage is the vertical carousel

Storing vertically allows you to store more in a smaller footprint
At the push of a button materials on a rack or shelf are brought to you at ergonomic height for easy retrieval

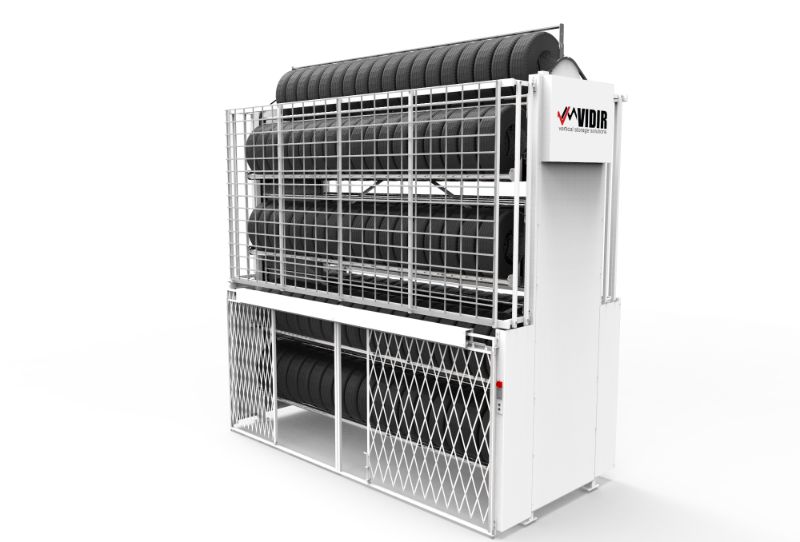

Tire Carousel Horizontal Security Gate-Vidir-compressed

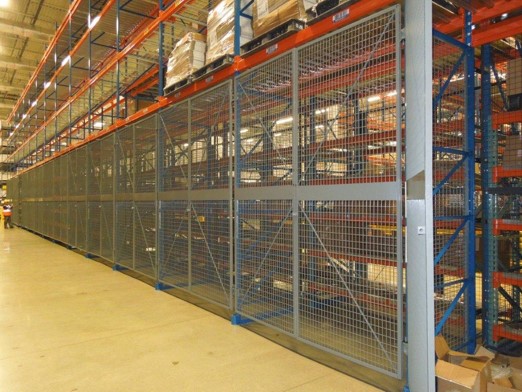

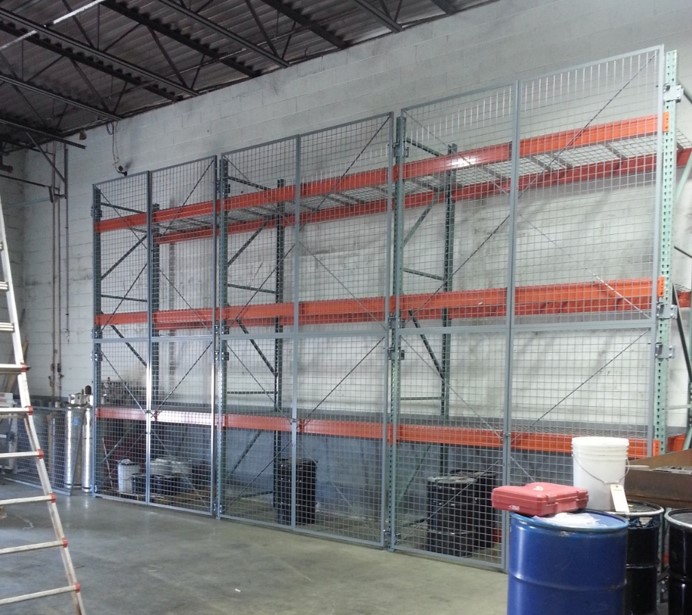

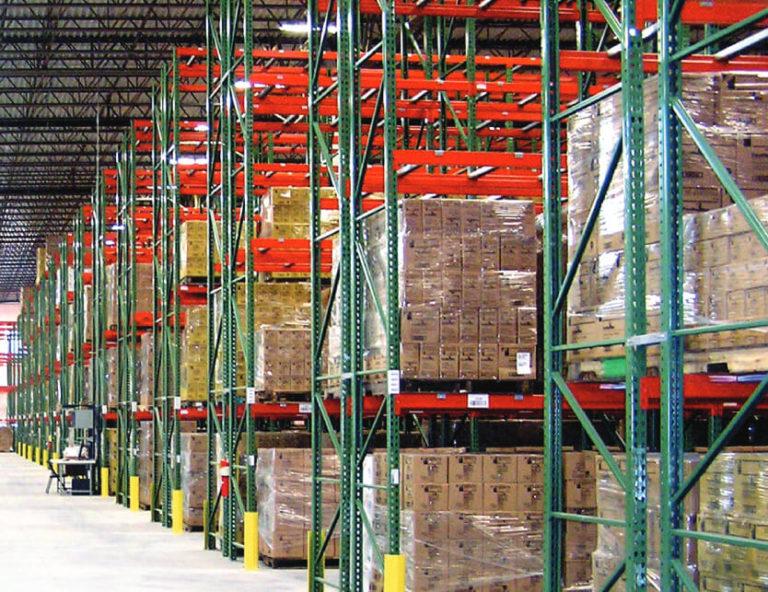

Pallet Racking

Industrial Pallet Racking is a heavier duty version of the wide-span racking

It is designed for the highest capacity of all industrial shelving types

Pallet racking is ideal for heavy, bulky and full pallet or case picking

DIMENSIONS:

Heights	Up to 24 feet
Depths	Up to 96 inches
Widths	Up to 144 inches

LOAD CAPACITY:

The load capacity per level is largely dependent on the racking construction materials

The overall load capacity range for pallet racking is 2,500 to 10,000 pounds per level
