Tire Storage Systems

Choose Between Automated Storage or Traditional Racks

The layout of your facility, your inventory turnover, and budget will determine, in large part, which tire storage solution best suits your facility

Automated Tire Storage (1m 58sec)

The space saving, automated features and benefits of the vertical tire carousel

“Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed cursus et nisi at vestibulum. Quisque et euismod ligula, semper facilisis elit. Nunc eleifend euismod elementum. Morbi rutrum erat vel libero viverra elementum. Donec accumsan tincidunt tellus et gravida.”

Mark O’Marketing
VP Sales & Marketing, Xappp

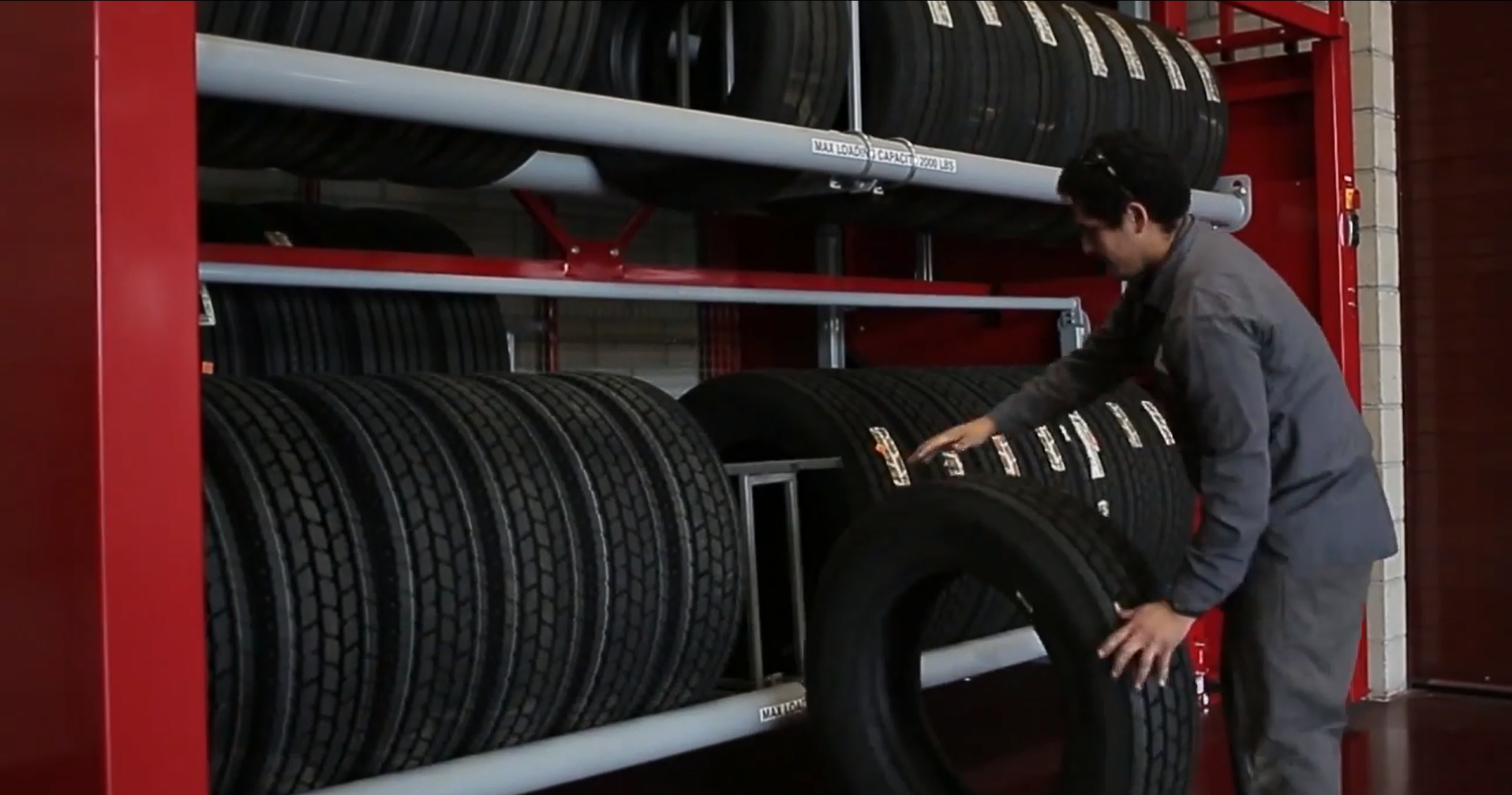

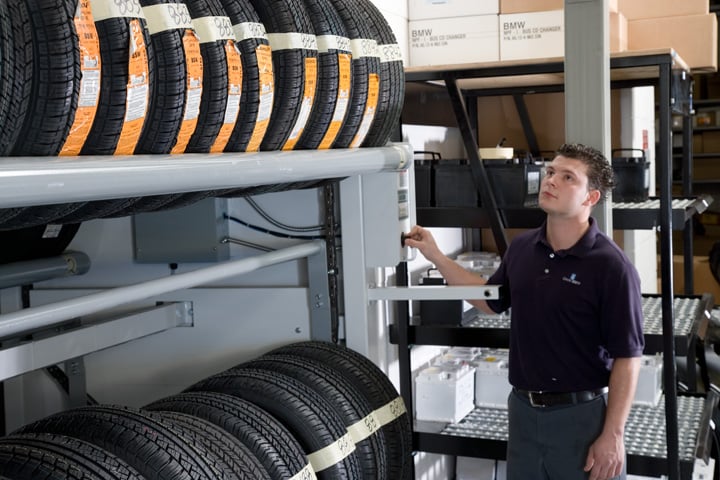

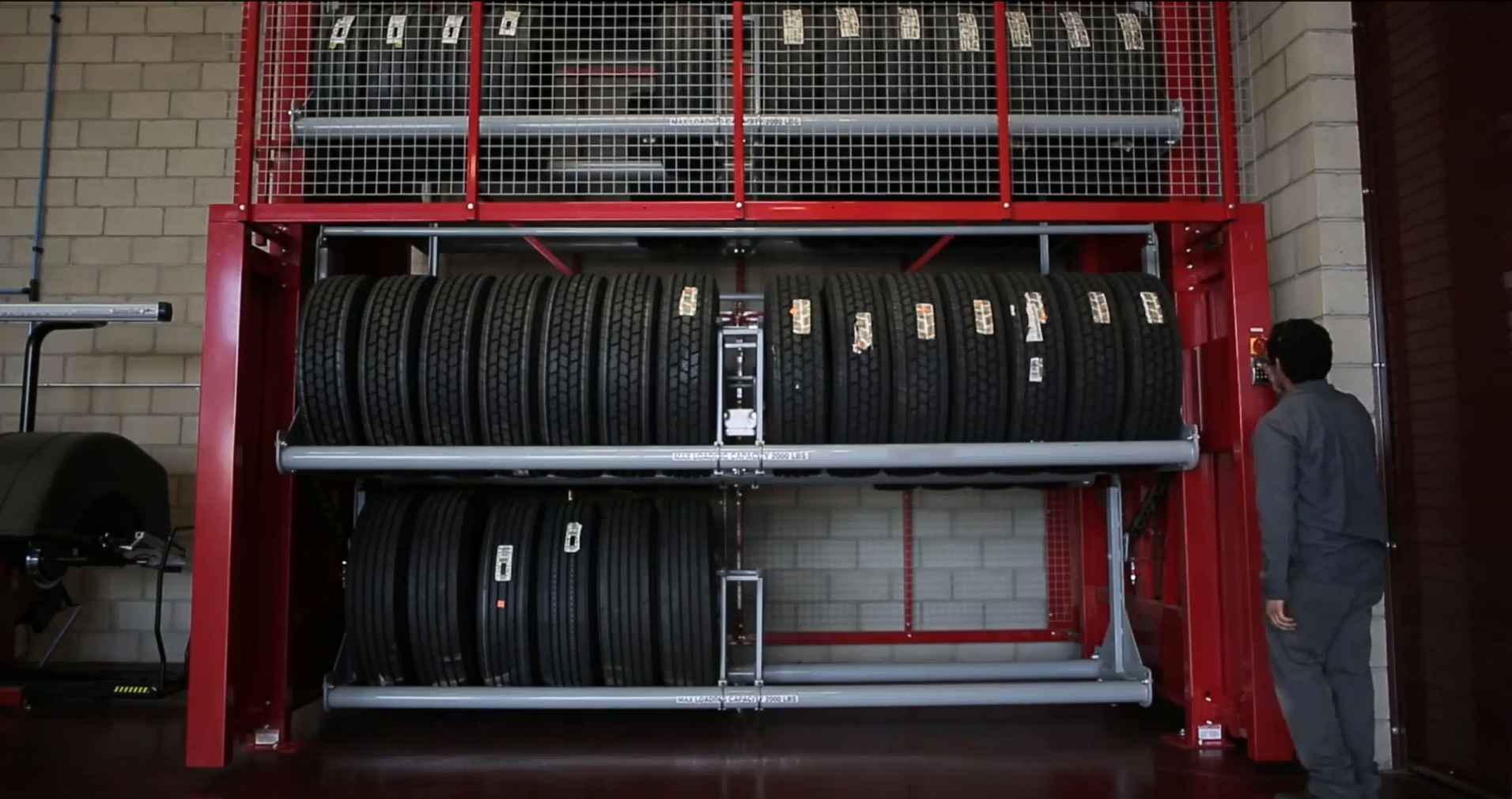

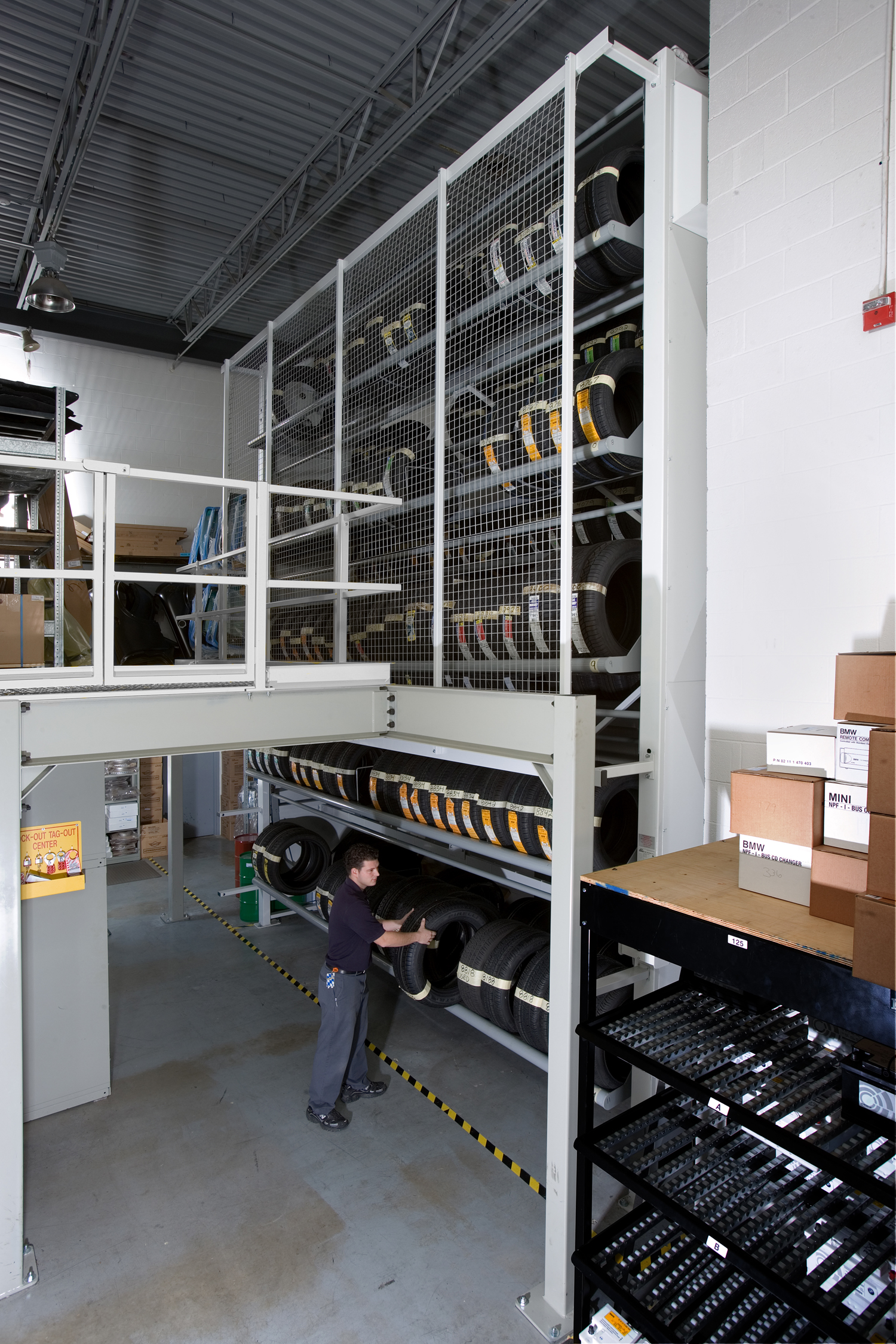

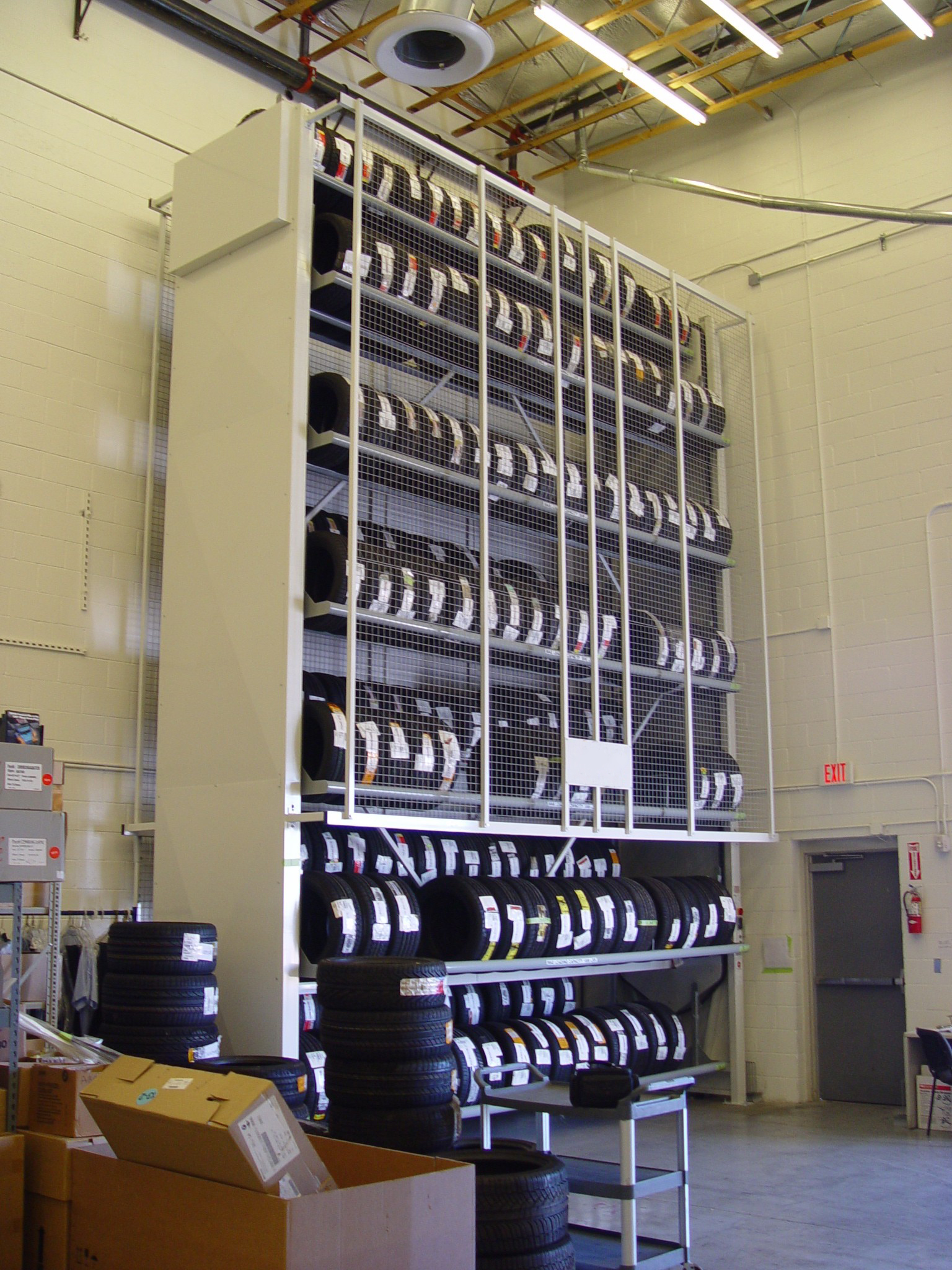

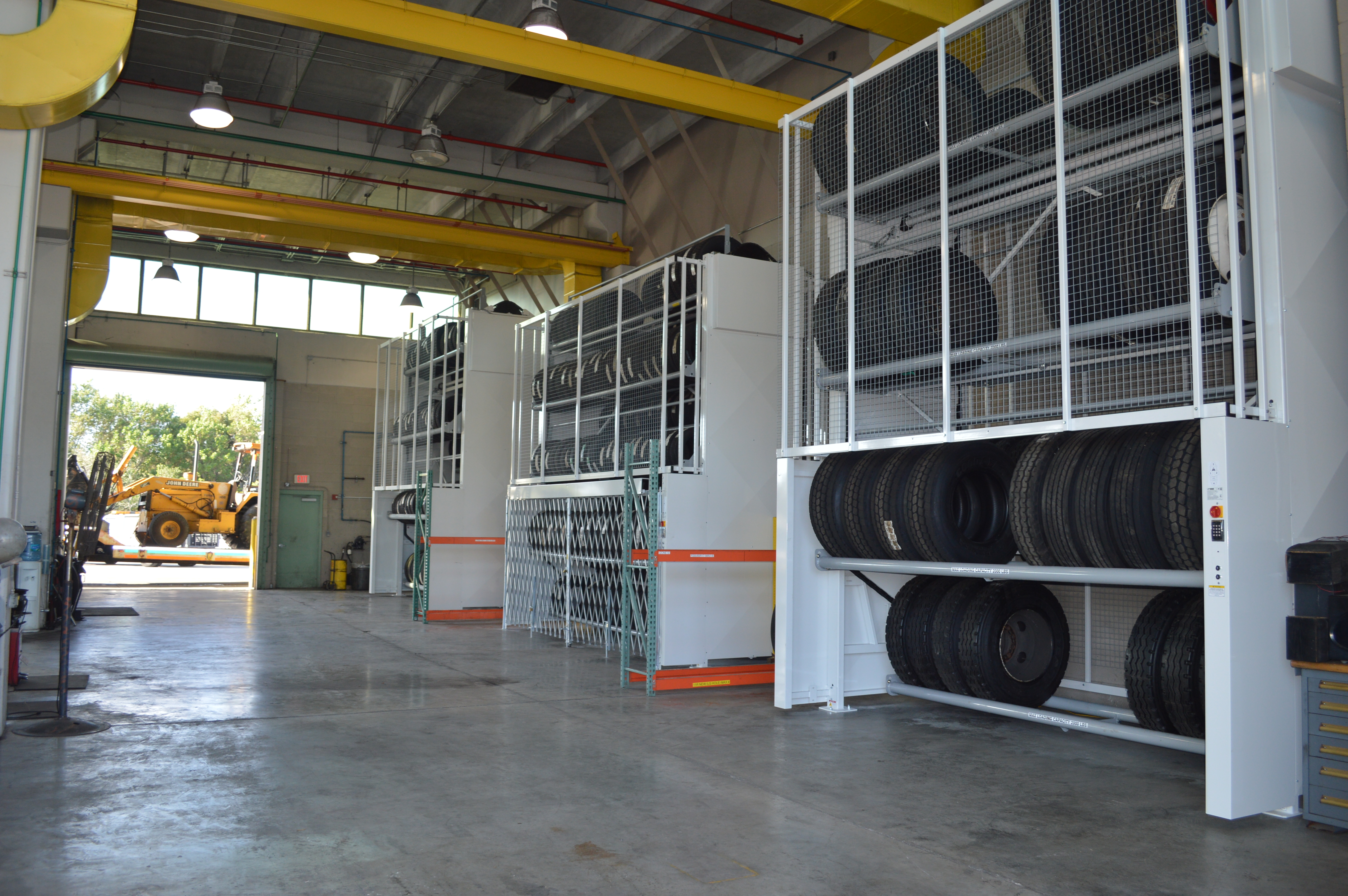

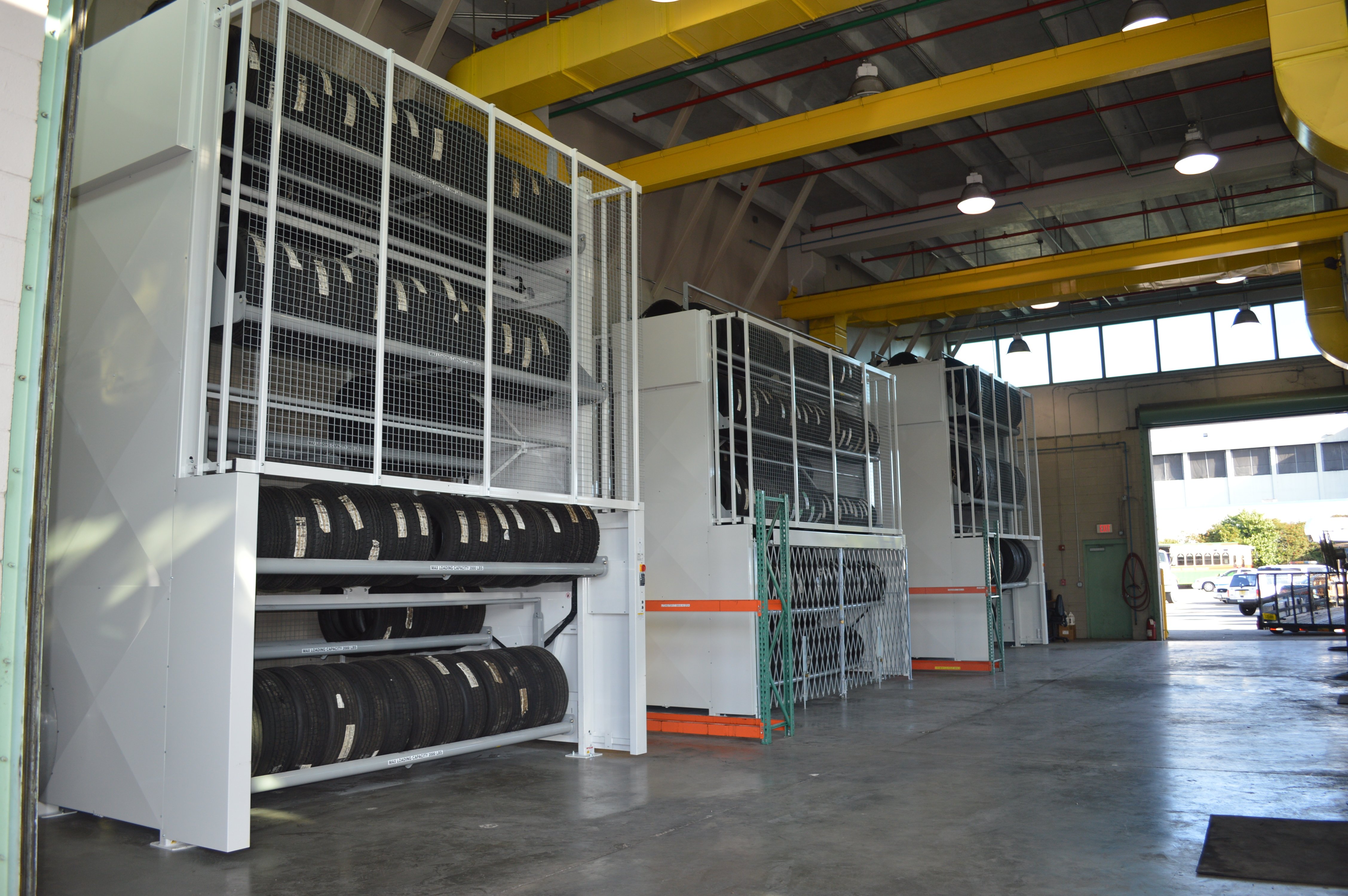

Vertical Tire Carousel

Secures and organizes tire inventory by centralizing it in one location

Retrieval time is reduced significantly as tires are automatically delivered to the operator within 20-30 seconds of the push of a button

Reduces injury by implementing ergonomics and minimizing physical requirements for handling heavy product

Prevents damage caused by stacking tires

Up to 352 tires can be stored on a single carousel

There are 3 models designed for different size tires:

Car: 28” diameter (T39),
SUV: 32” diameter (T45:); and
Large truck: 44” diameter (HT54)

A single carrier can store various sizes of tires, under the maximum range for that carrier

Standard Features

Semi-Automated Controls w/Keypad
21’ per minute retrieval speed
Load per Carrier: 1,000 to 2,000 lbs
2 Tire Dividers per carrier
2” mesh guarding front and back
Color: White with grey interior standard
Built in Safety to shut carousel off
1 Year Manufacturers Warranty
Optional auto-retrieval software, integrates with ERP or WMS systems

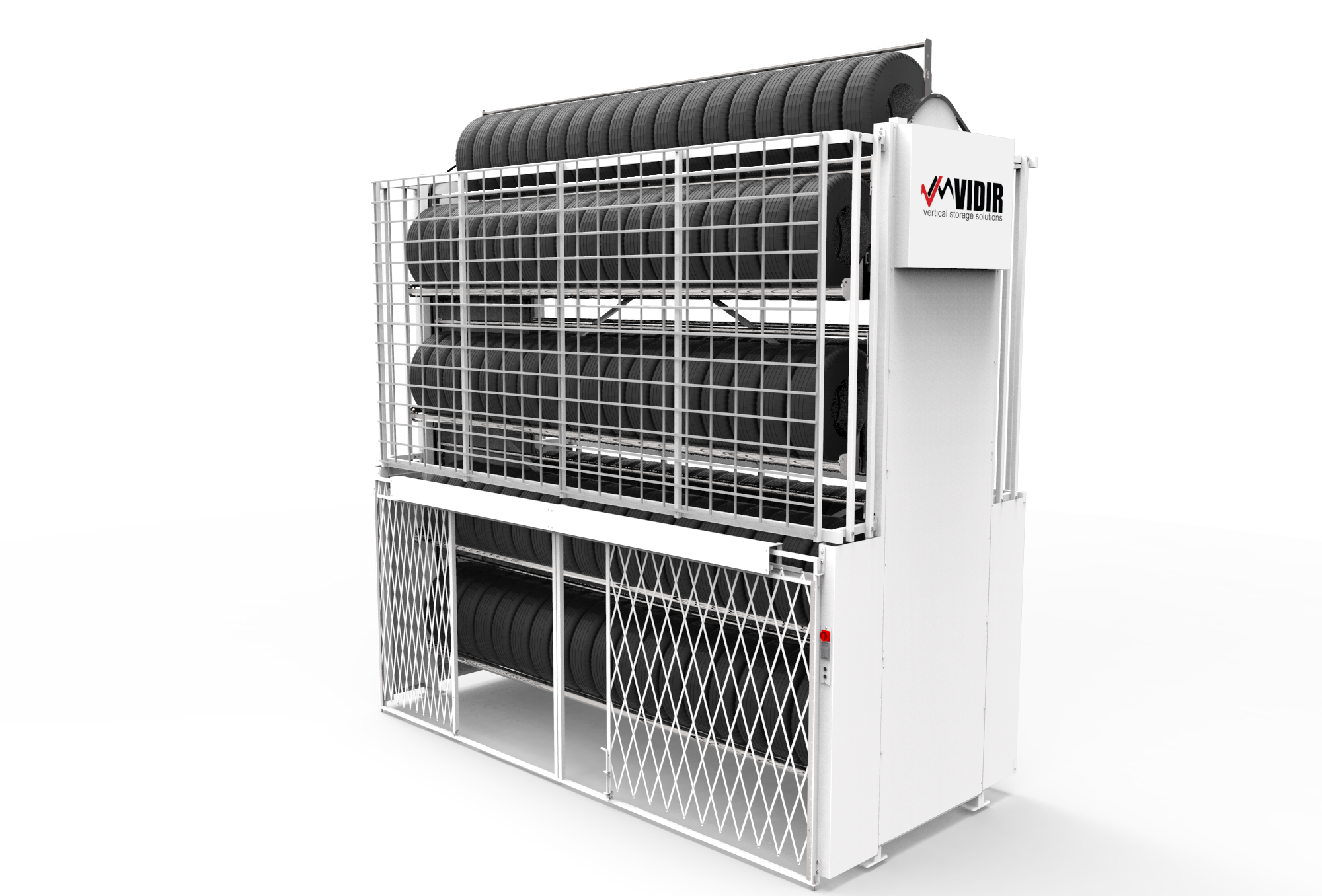

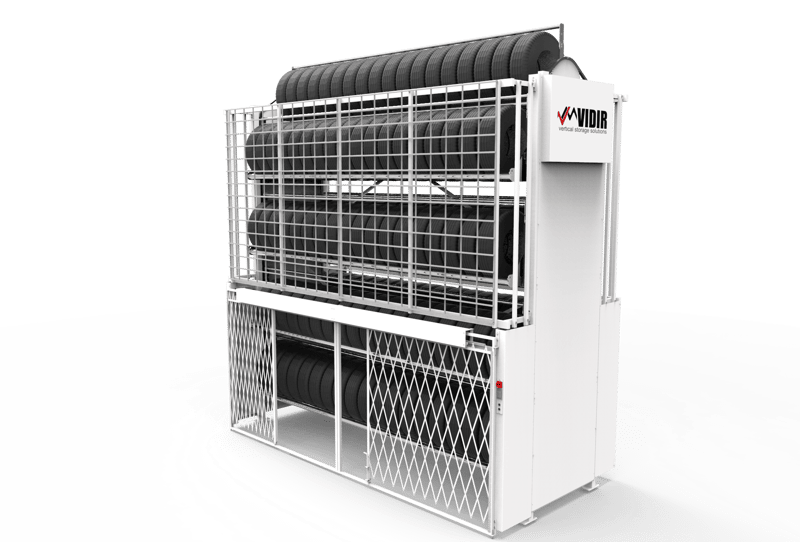

Vidir-Tire Carousel Horizontal Security Gate

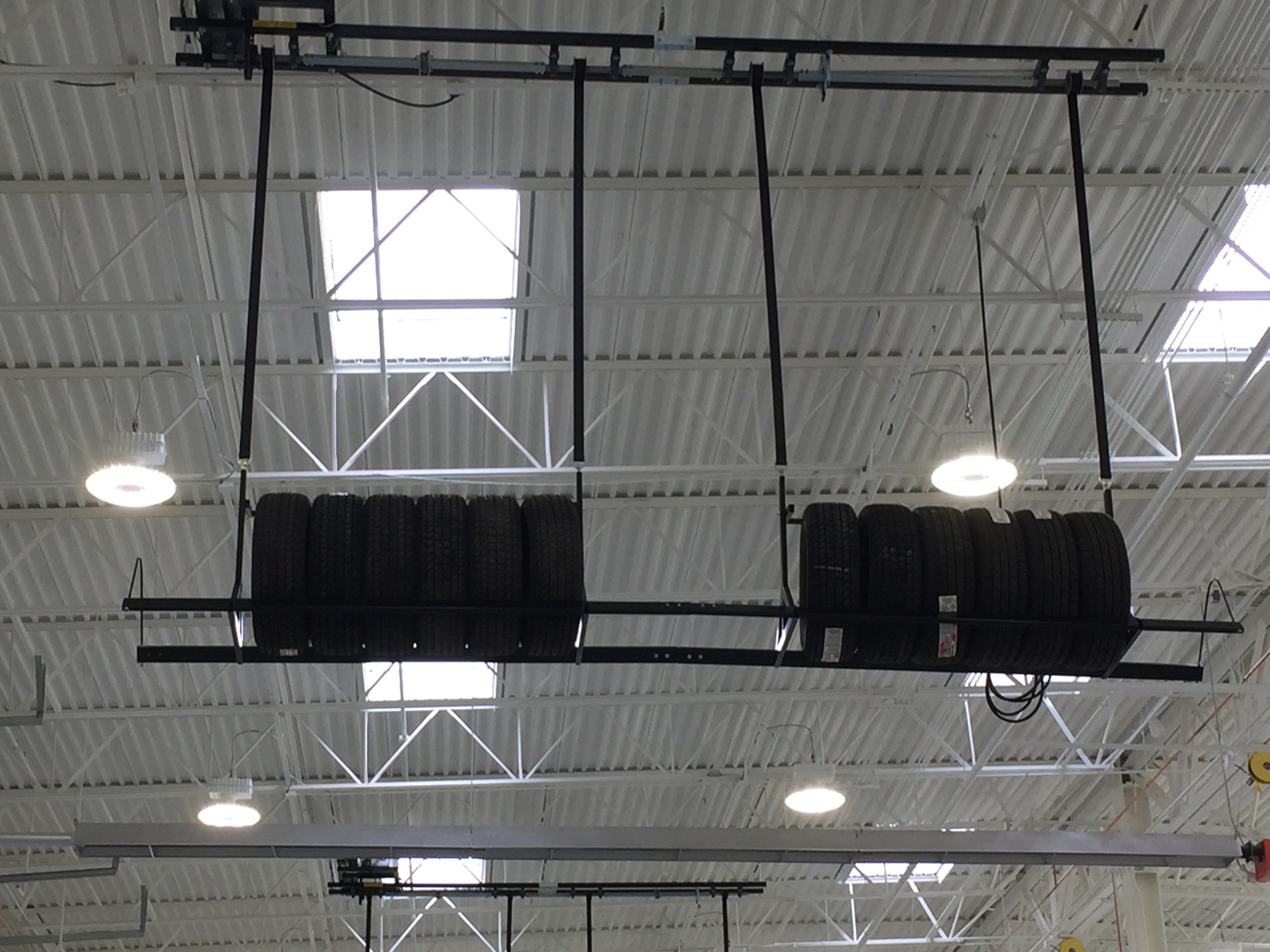

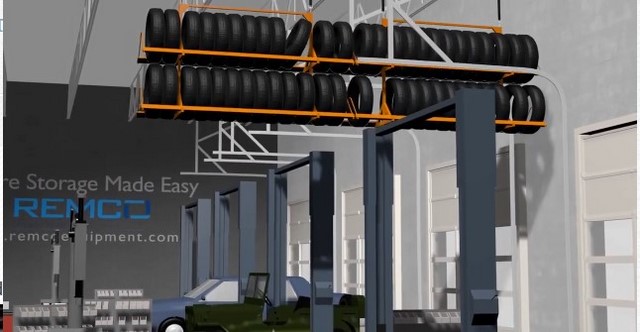

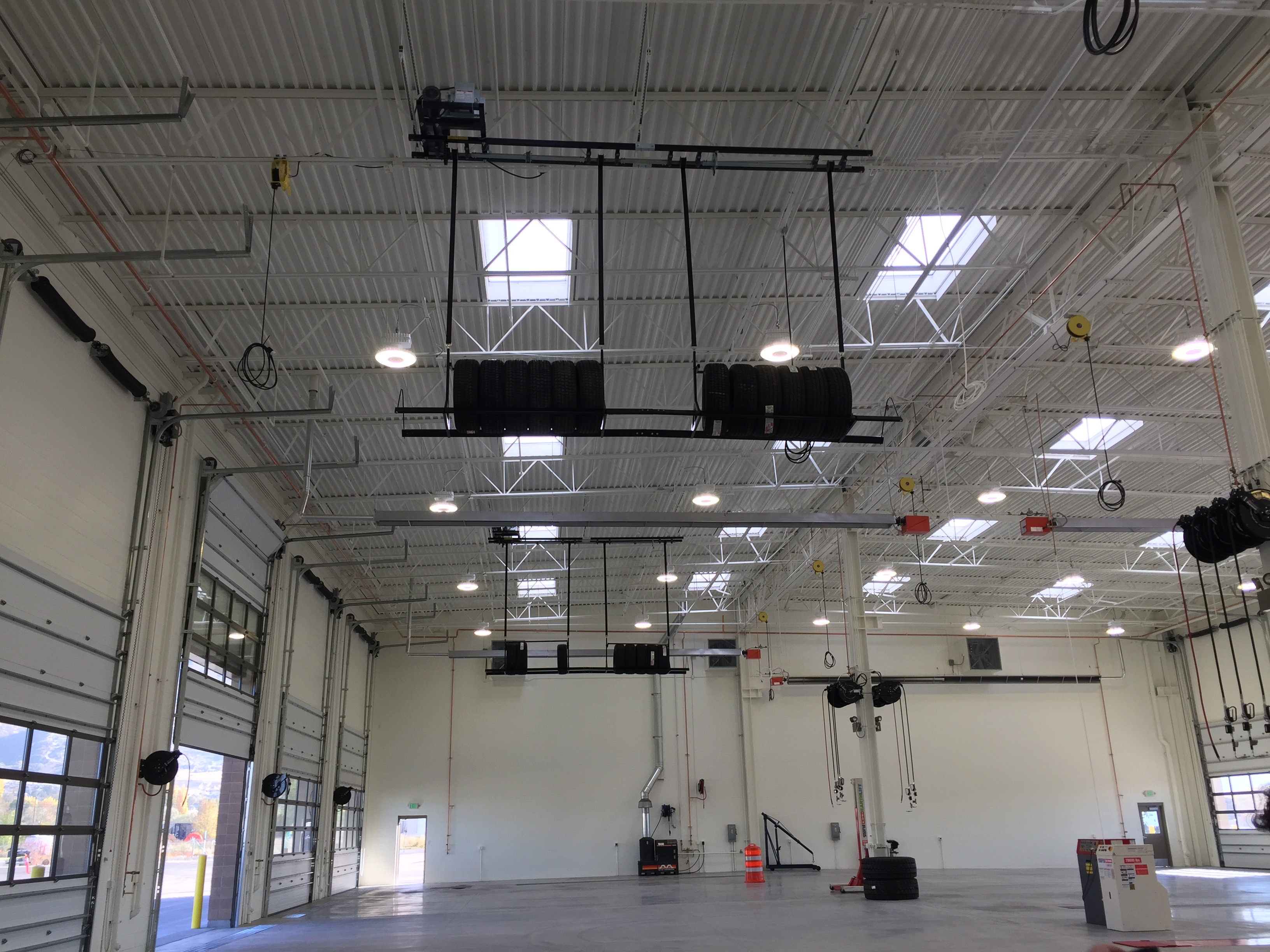

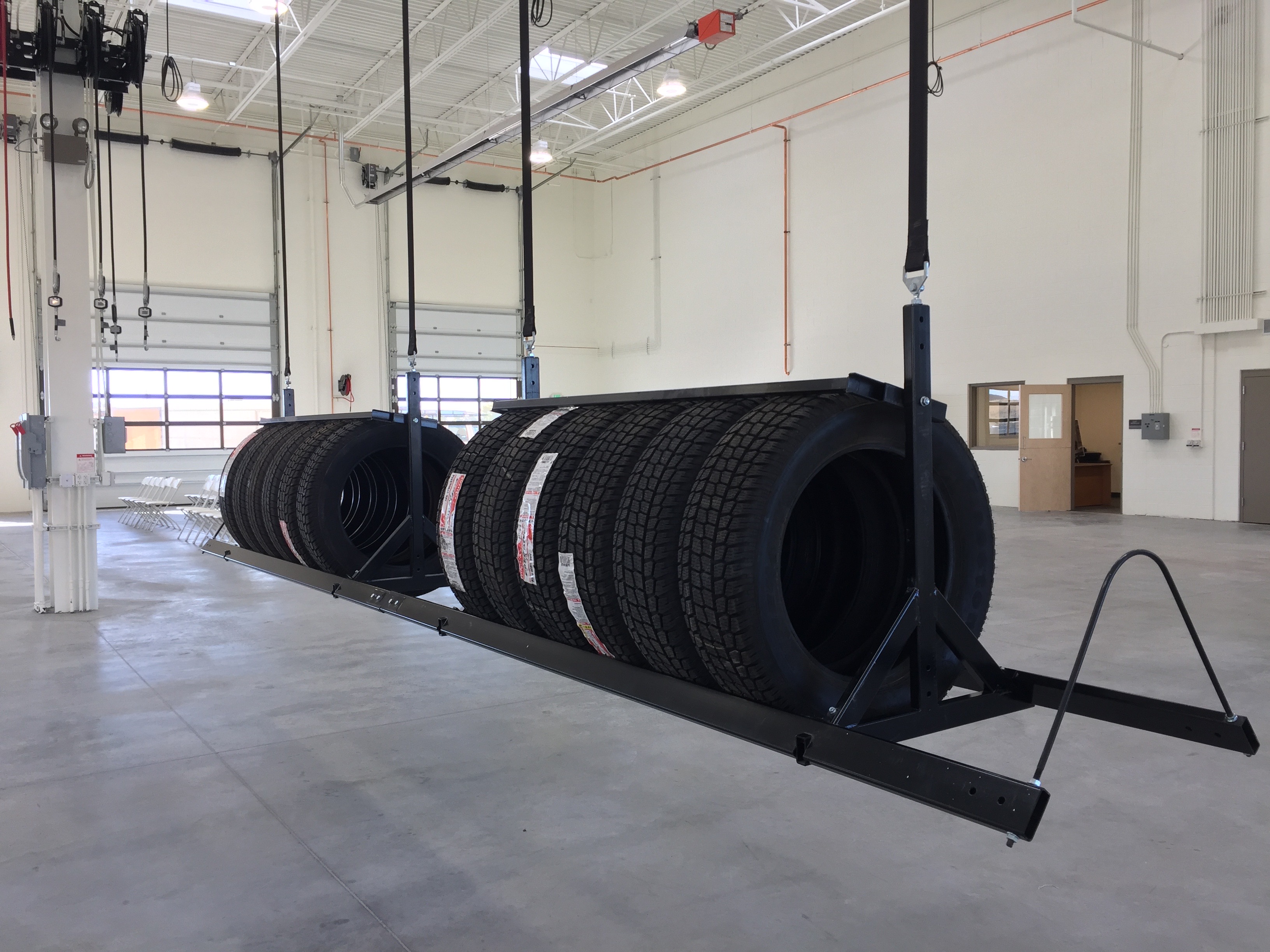

Overhead Tire Storage

Free up a substantial amount of floor space by converting the unused air above into a storage area

Save time searching for inventory - easily access with the touch of a button and tires are lowered to you within arms reach

Increase employee safety by eliminating ladders and over-reaching injures

Keep your tire inventory safe and secure by storing overhead

FEATURES:

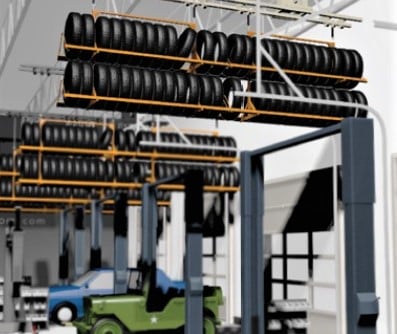

Double your tire storage in the same overhead space with an over/under lift design

8 foot long unit holds 24 tires
12 foot long unit holds 36 tires
16 foot long unit holds 48 tires

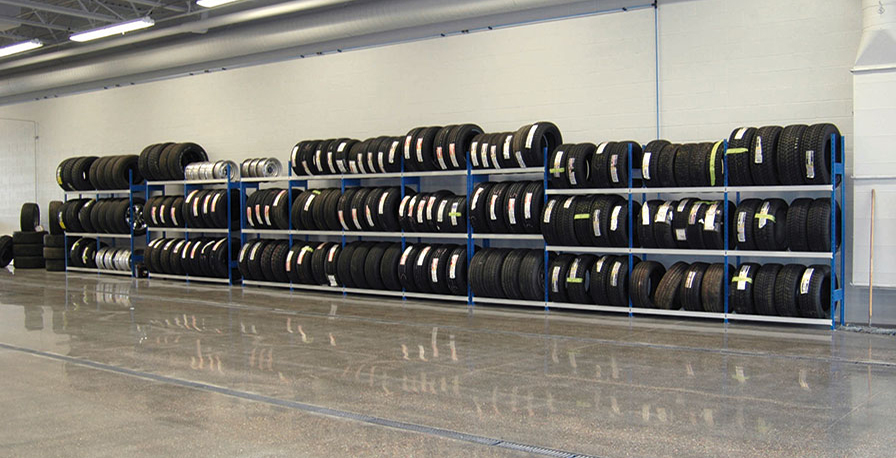

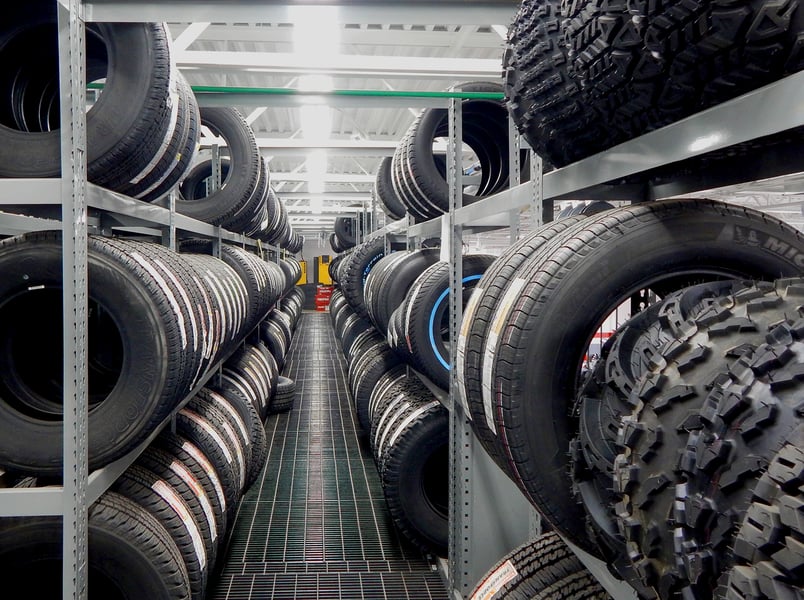

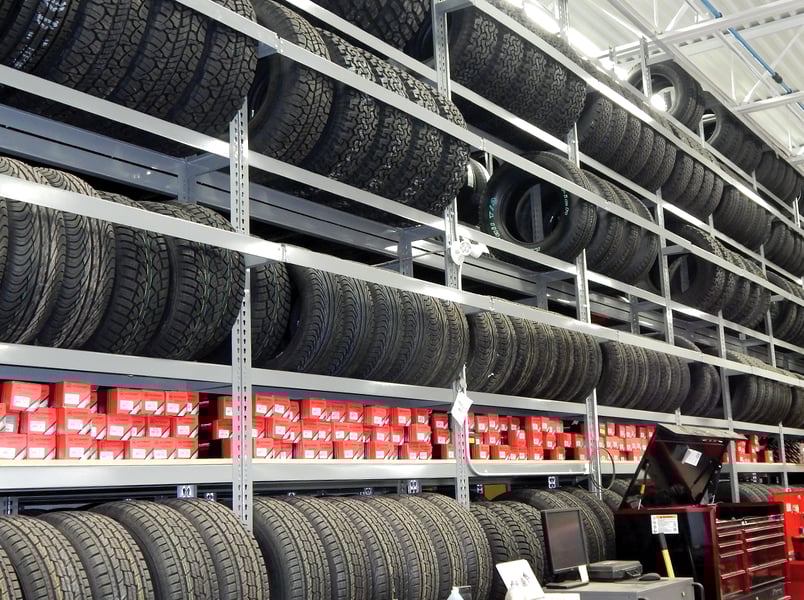

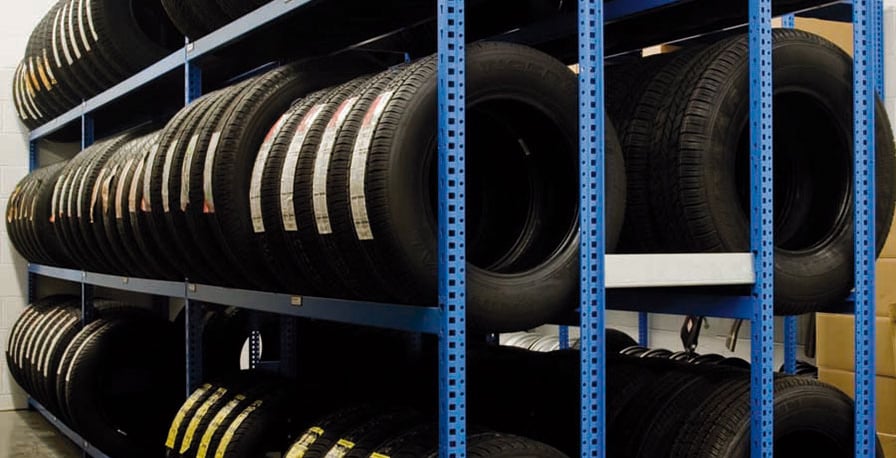

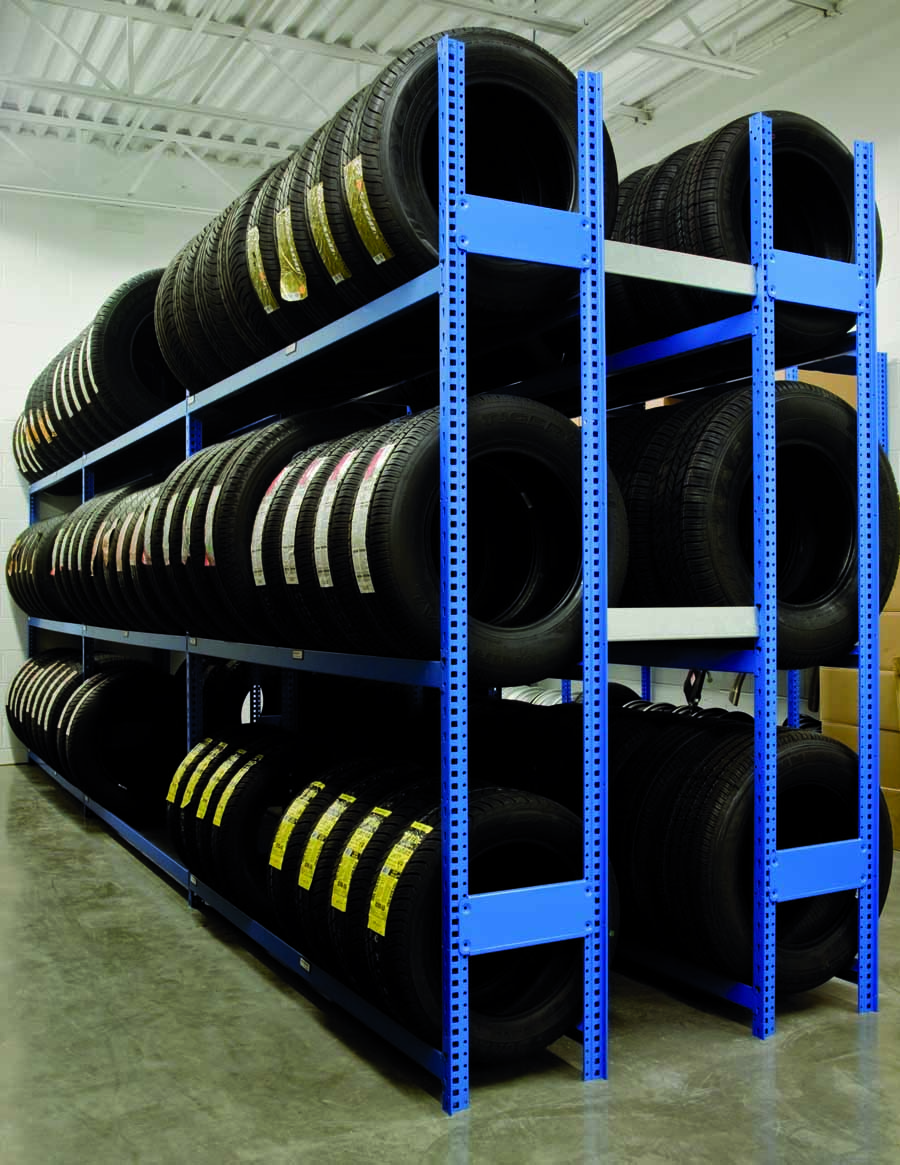

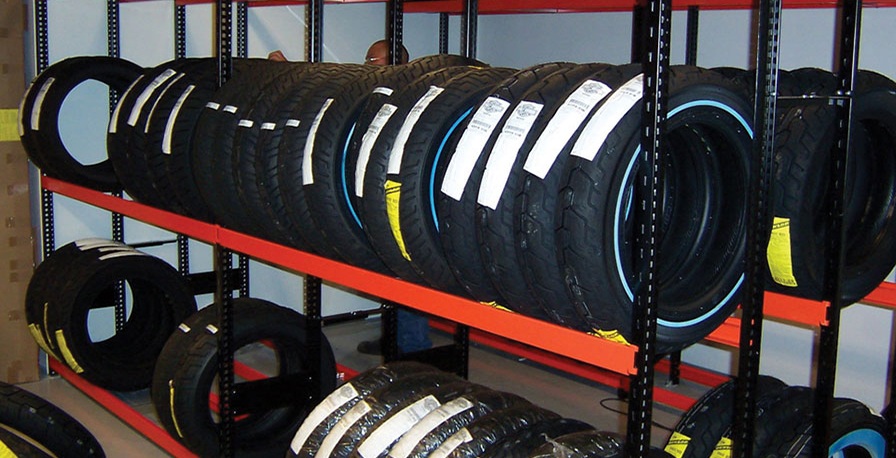

Tire Rack Storage

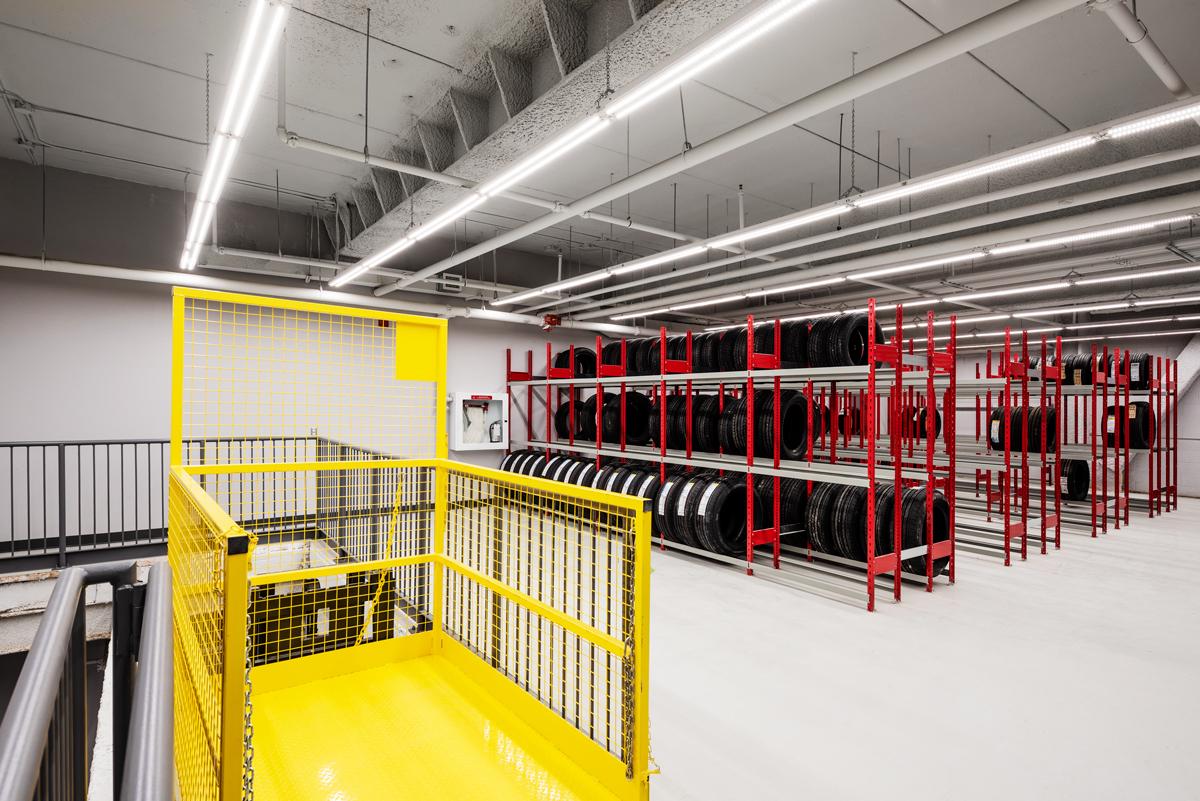

Easy assembly, sturdy posts, and heavy load capacities, make mini-racking, aka wide-span shelving, a great tire storage option for facilities with lower ceilings or catwalk/mezzanine applications

Mini-Racking Load Capacity

The load capacity per shelf is largely dependent on the shelf dimension and gauge of steel

The overall load capacity range for mini-racking, also known as wide-span shelving, is 400 lbs to 1500 lbs. per level

Wide-Span Shelving Dimensions

Heights	approx. 3 feet to 20 feet
Depths in inches	15”, 16”, 18”, 24”, 30”, 32”, 36”, 48”
Widths in inches	36”, 42”, 48”, 60”, 66”, 72”, 96”

Wide-span shelving can be stacked on top of each other using a catwalk or mezzanine system
