Stationary, Mobile, and Motorized Tool Cabinets

Multiple Configurations to Fit Your Specific Needs

The versatility created by multiple configurations and accessories gives you the freedom to personalize your stationary, mobile or motorized cabinet

Build your own stationary or mobile cabinet with this easy-to-use configurator

Click on the banner above to get started

“Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed cursus et nisi at vestibulum. Quisque et euismod ligula, semper facilisis elit. Nunc eleifend euismod elementum. Morbi rutrum erat vel libero viverra elementum. Donec accumsan tincidunt tellus et gravida.”

Mark O’Marketing
VP Sales & Marketing, Xappp

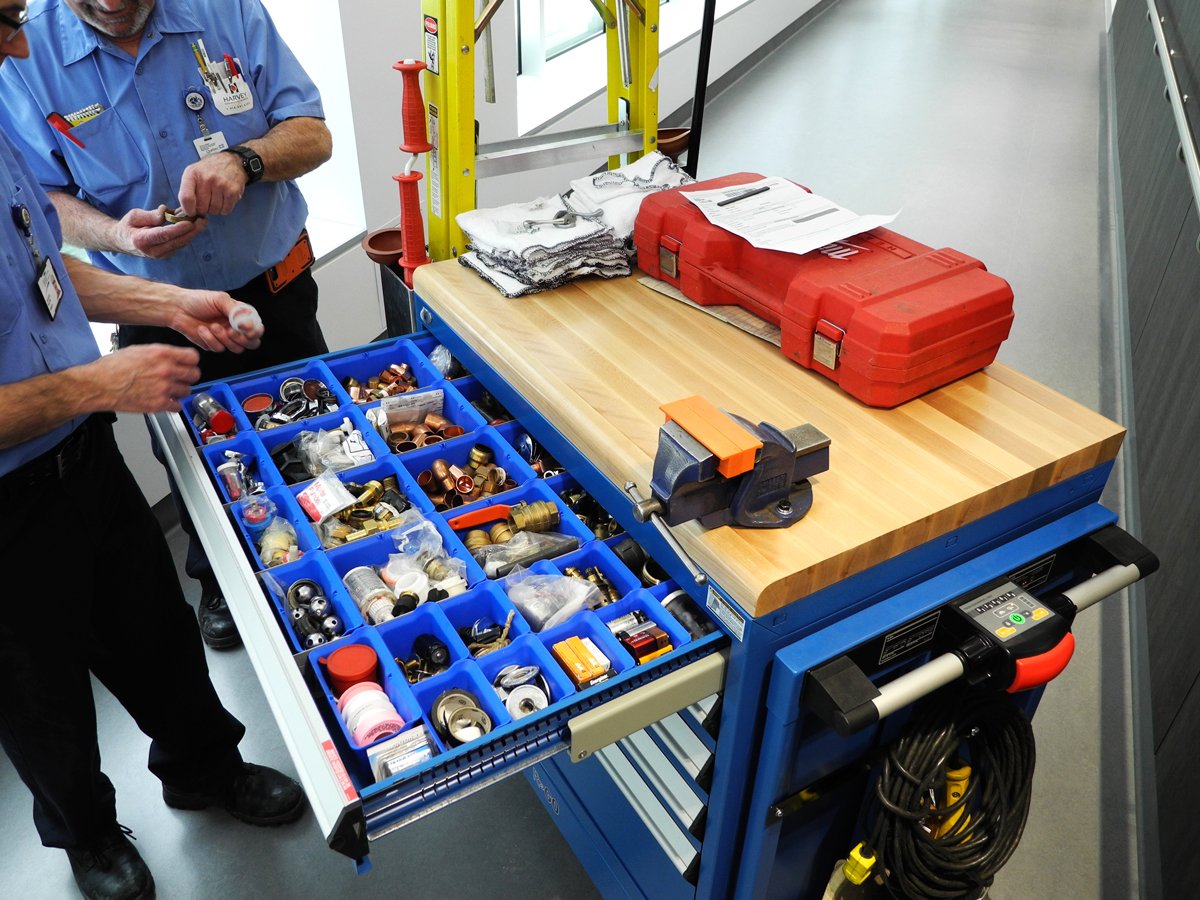

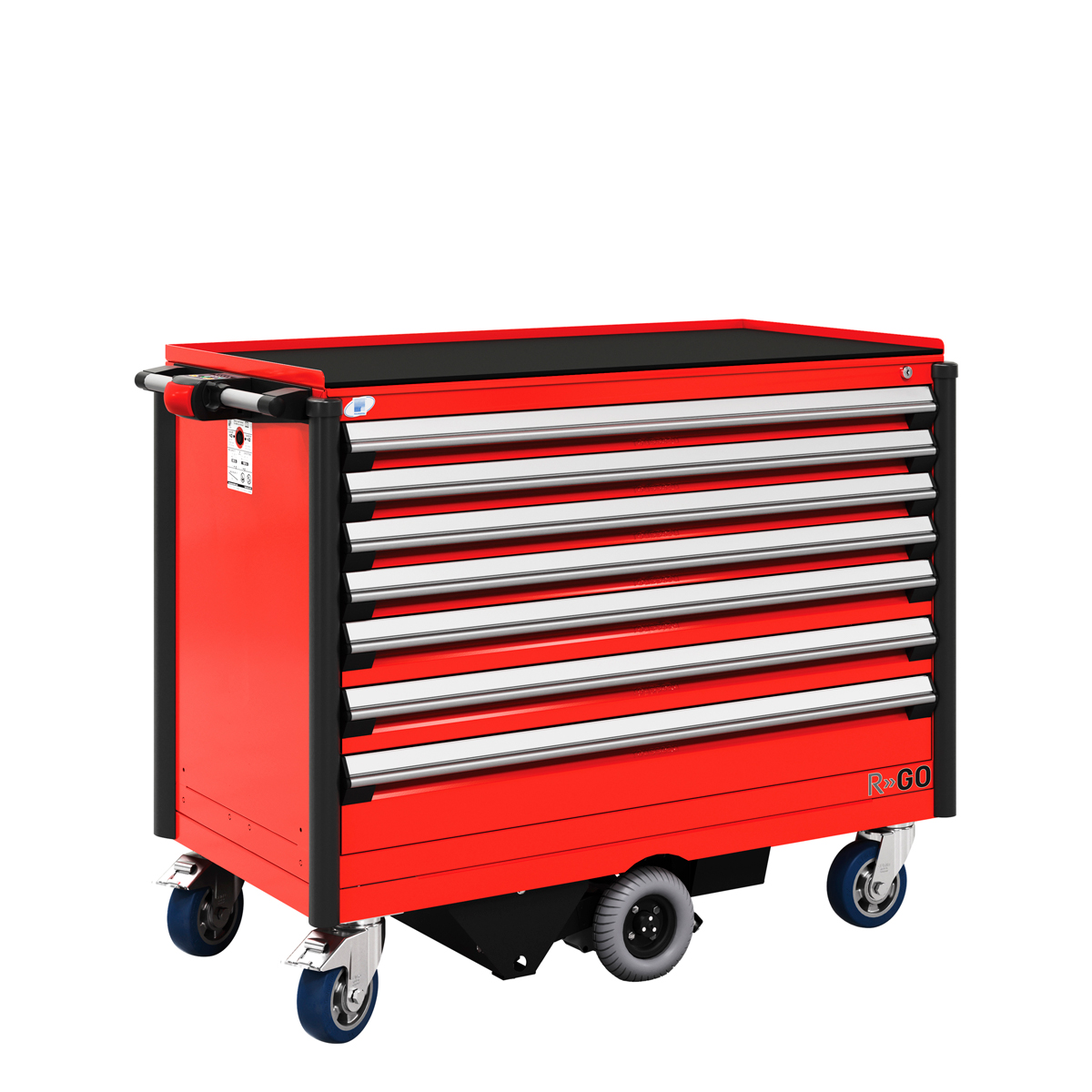

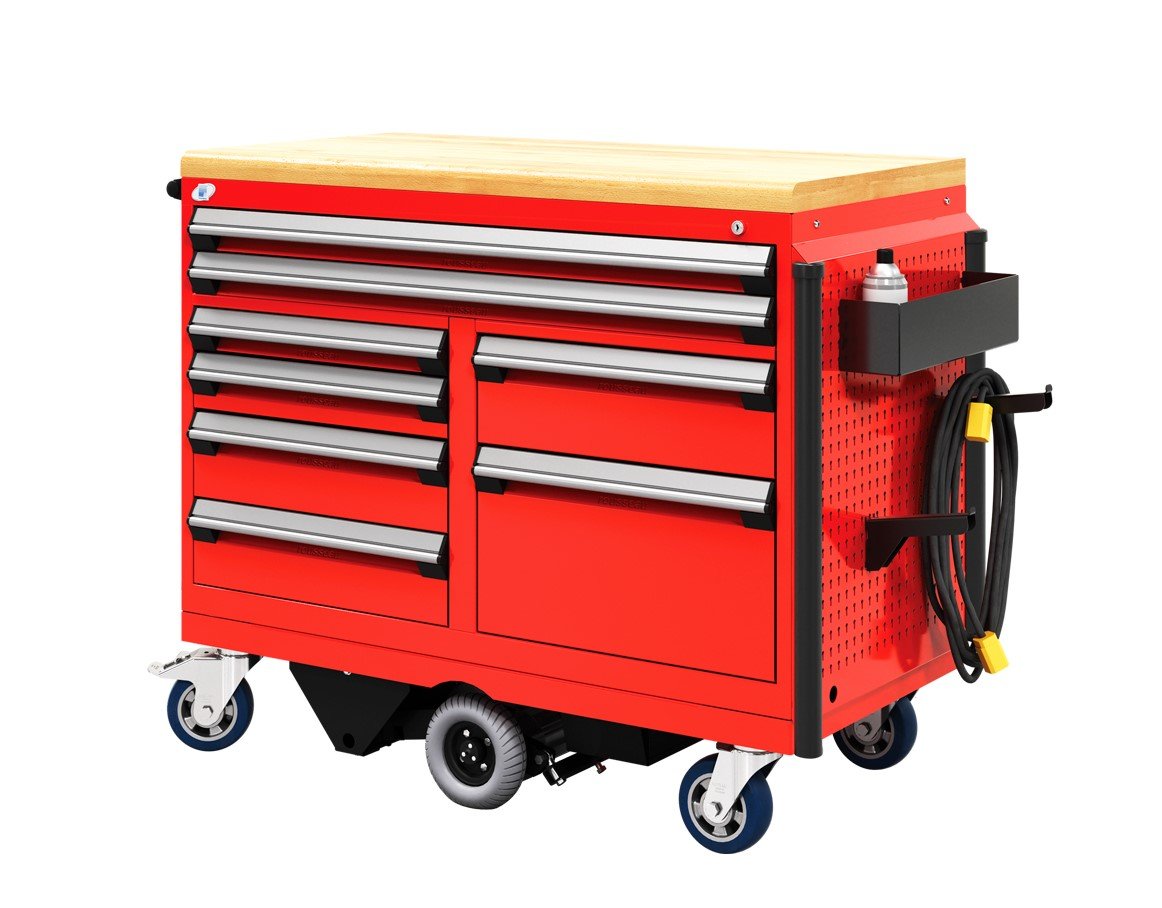

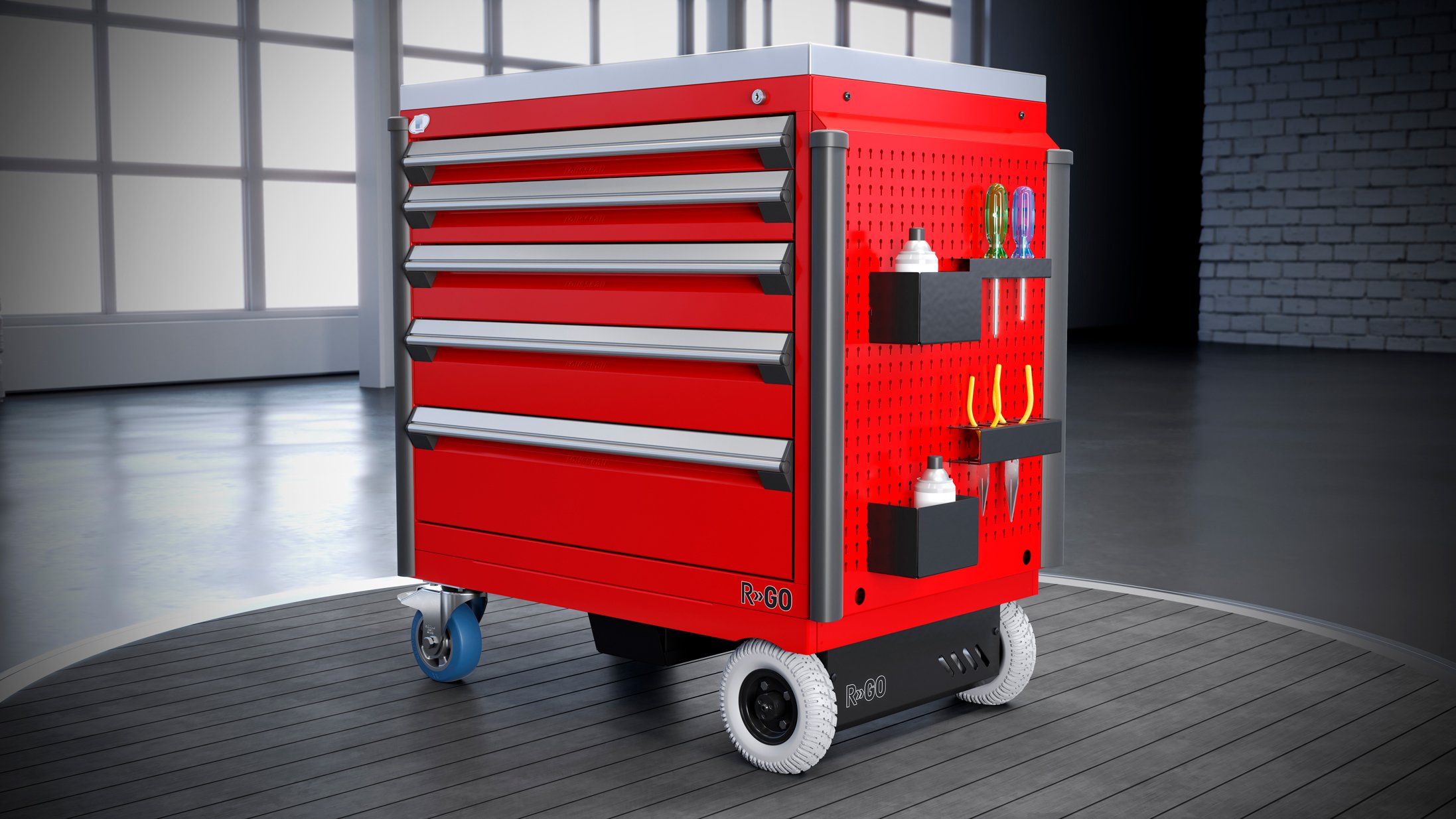

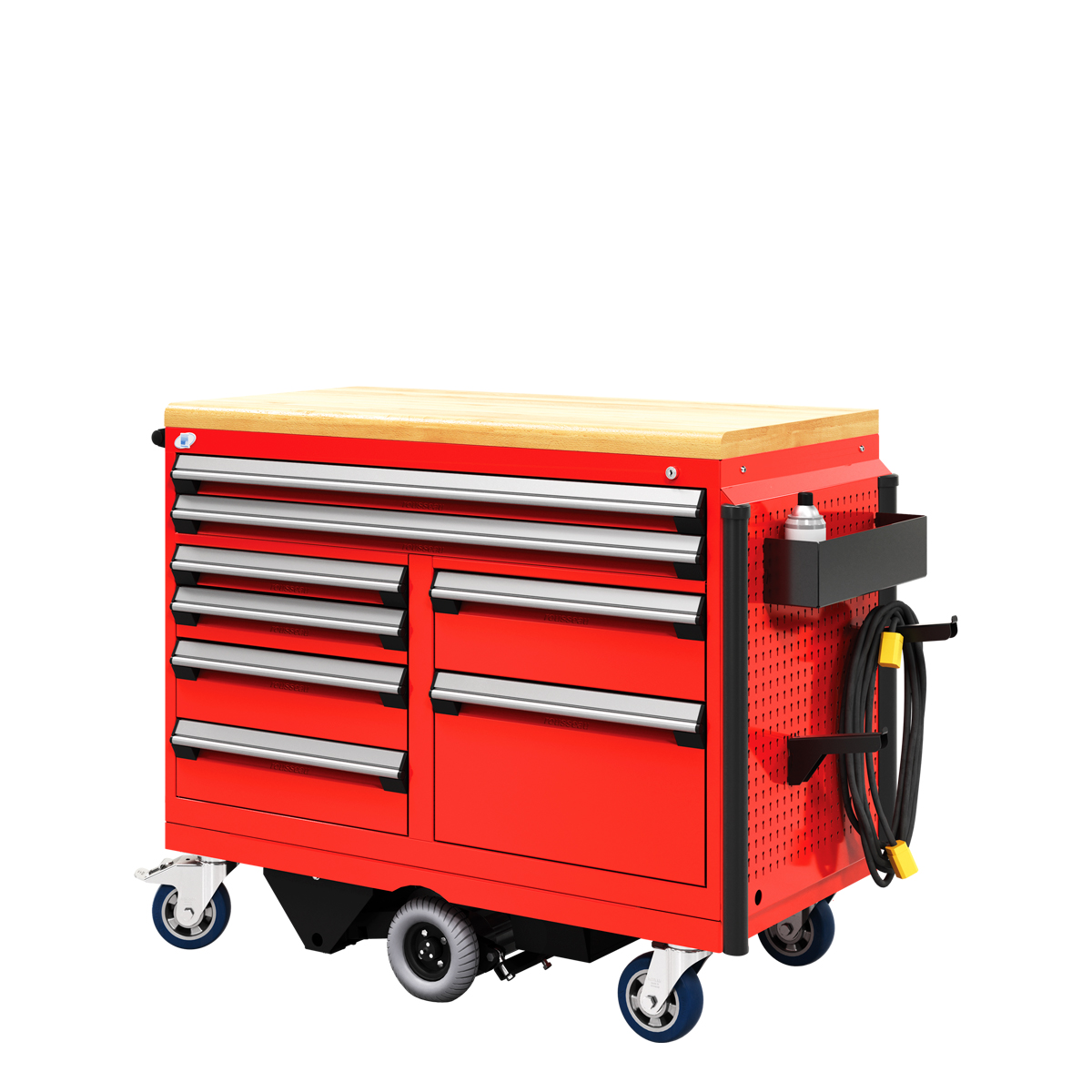

Motorized Toolbox

Designed to safely transport heavy loads over long distances considerably reducing physical effort and risk of injury

FEATURES:

Automatic ergonomic brake
Emergency stop and anti-trapping button
8-10 hours to fully charge battery
Can be moved manually if power lost

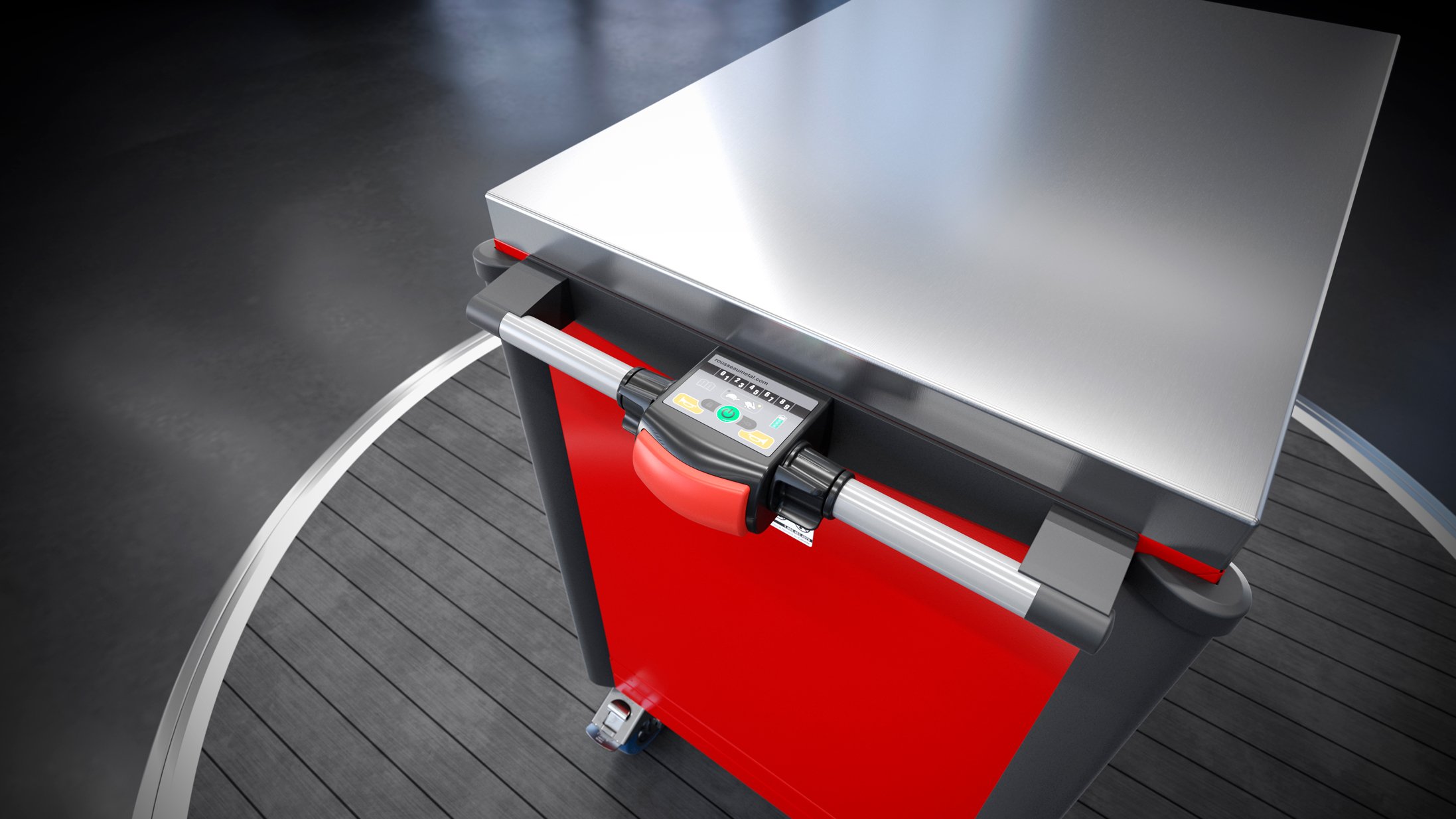

Can personalize a 4-8 digit authorization code in order to operate, or deactivate code features
Equipped with horn to warn others

DRAWERS:

Standard central keyed lock for all drawers of same cabinet
“One drawer at a time” mechanism allows only one-drawer to be opened at a time
Individual drawer capacity: 400 lbs evenly distributed (Note: do not exceed maximum loads for system-see next section)
100% Drawer extension with lifetime warranty on rolling mechanism
10 standard drawer heights: 3”, 4”, 5”, 6”, 7”, 8”, 9”, 10”, 12”, 14”
Drawers can be configured in multiple width/height variations

SPEED AND MAXIMUM LOAD CAPACITIES:

800 lb overall capacity for 36”W Toolbox
1500 lb overall capacity for 48”W Toolbox
3 speeds (approximate):

2km/h (50% power)
4km/h (75% power)
6km/h (100% power)

Can climb slopes of 6 degrees maximum

DIMENSIONS:

Widths: 36”, 48”

Note: an optional side cabinet can be installed adding 14” to the width
Depths: 24”
Heights: 28”, 30”, 34”, 38”

ACCESSORIES:

Partitions, dividers and plastic bins for drawers
Utility panel with hooks & accessories
Hanging file bars
Electronic or Standard locks
Corner bumpers for protection
Foam or PVC drawer liners
Foam for tools and collets
14” side cabinet
Work surfaces: rubber mat, laminated plastic or hardwood, painted or stainless steel, acrylic/PVC laminate, dissipative

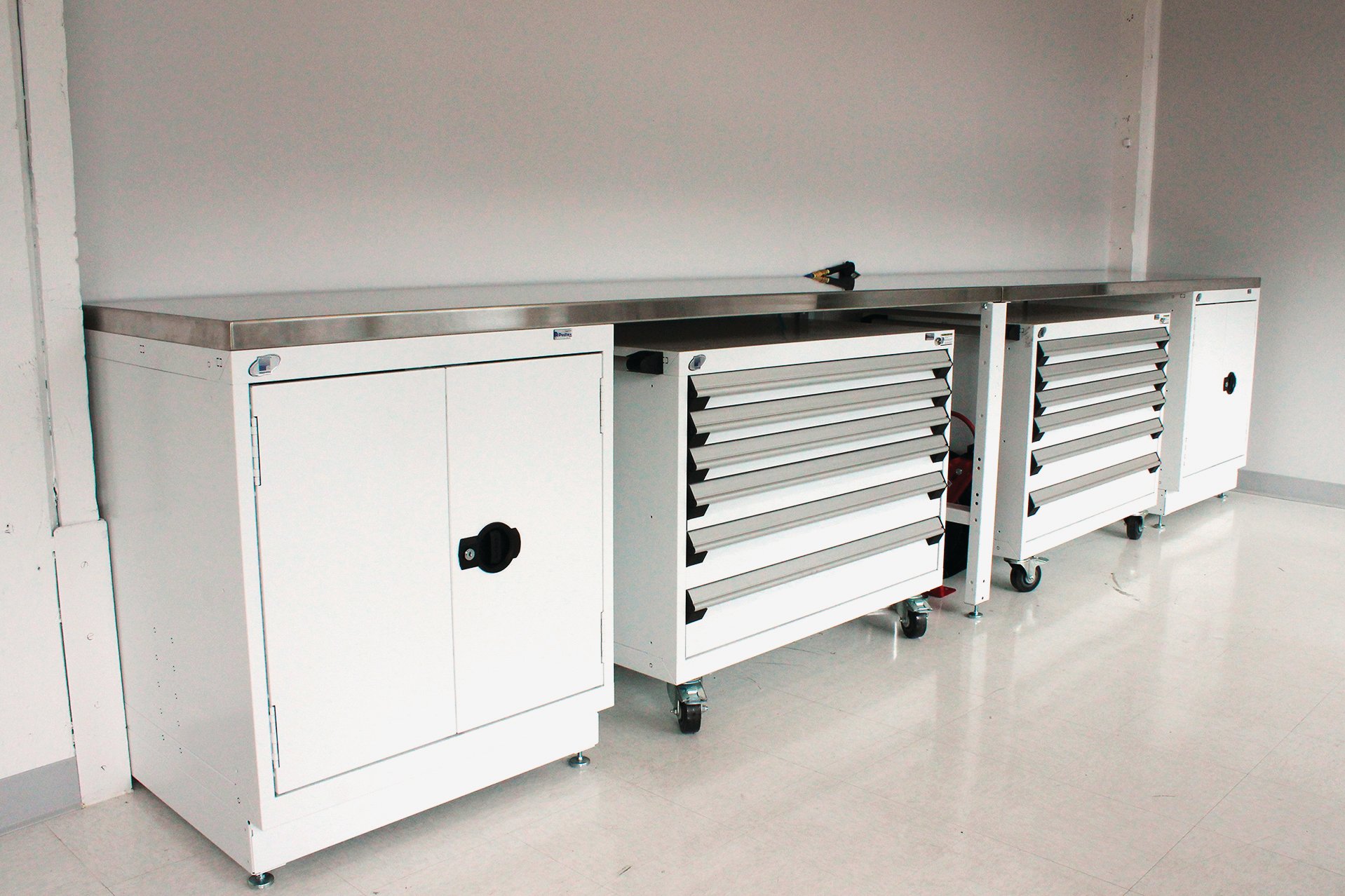

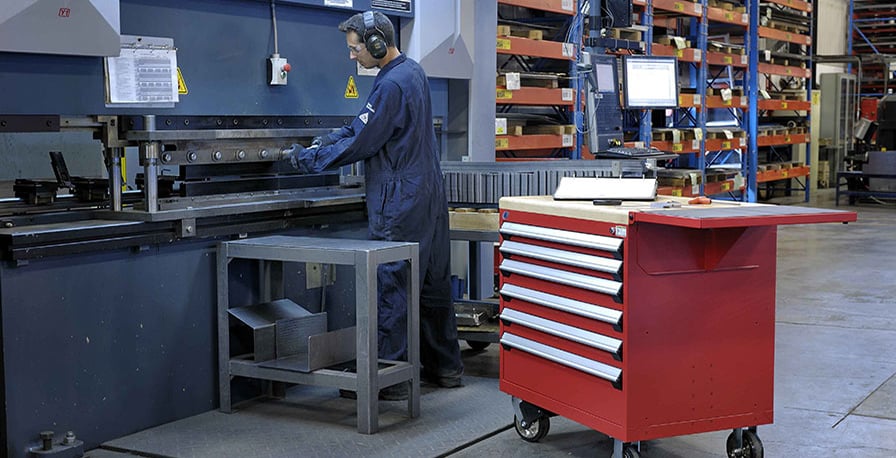

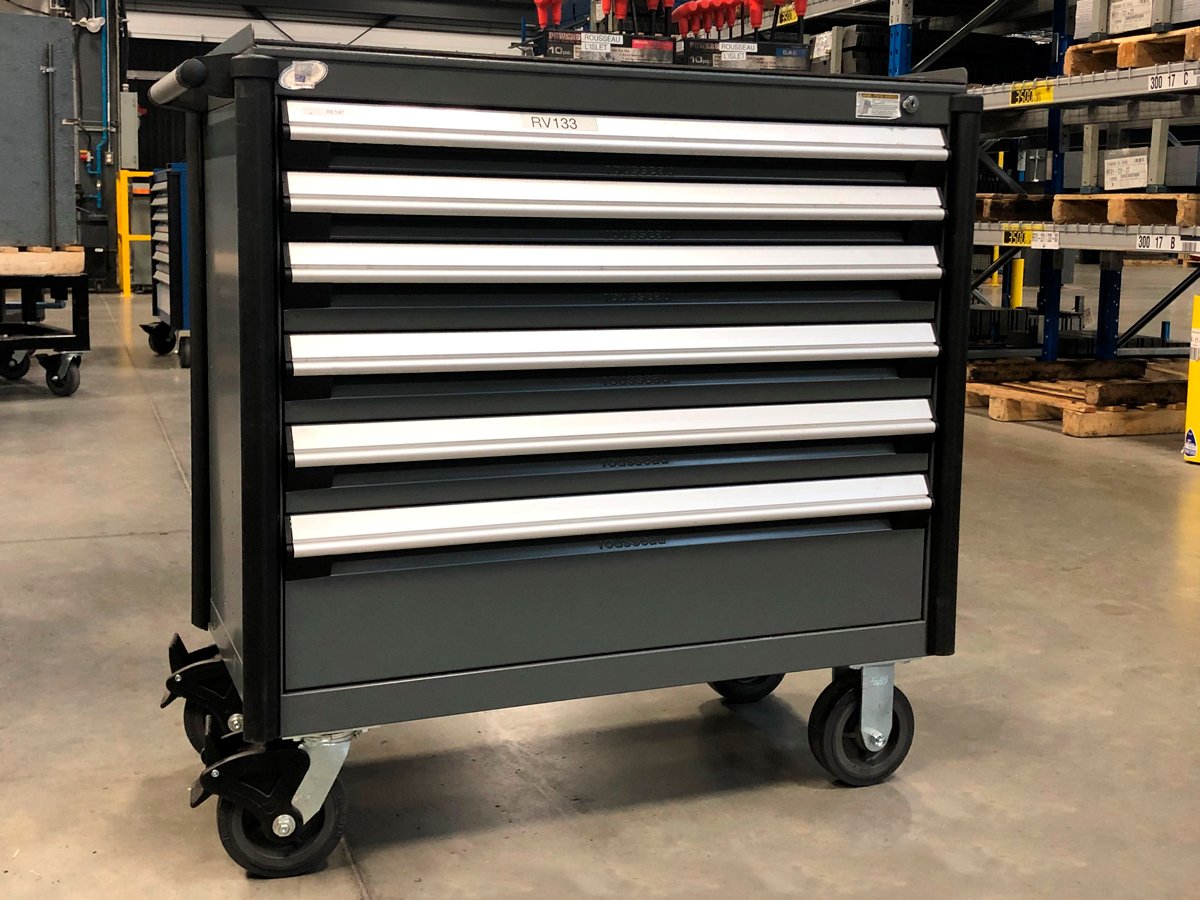

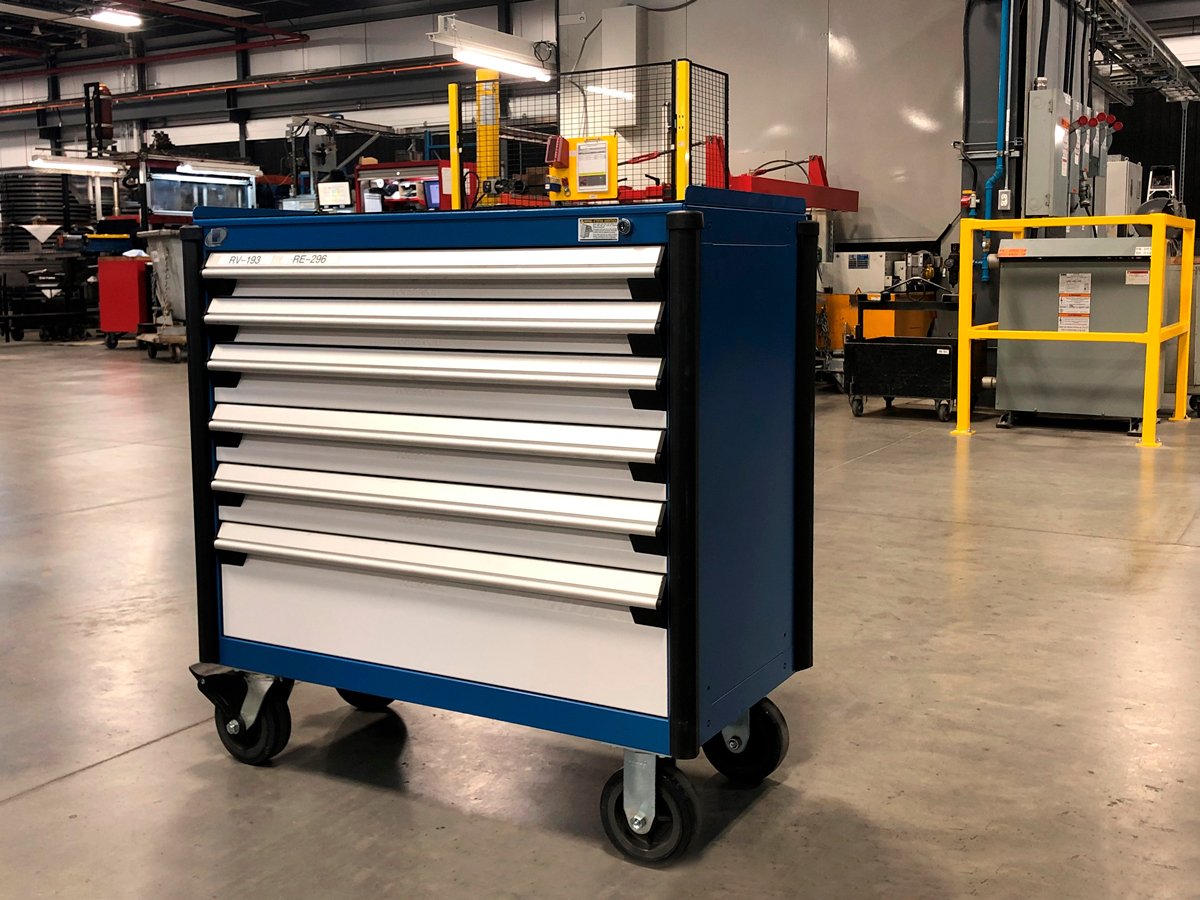

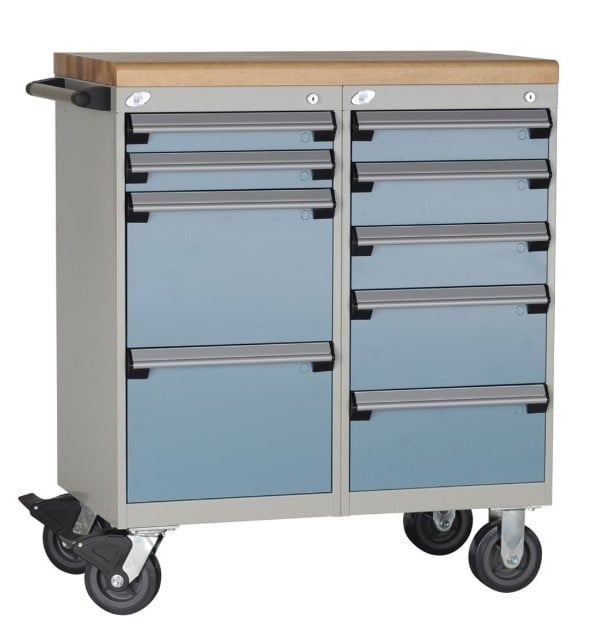

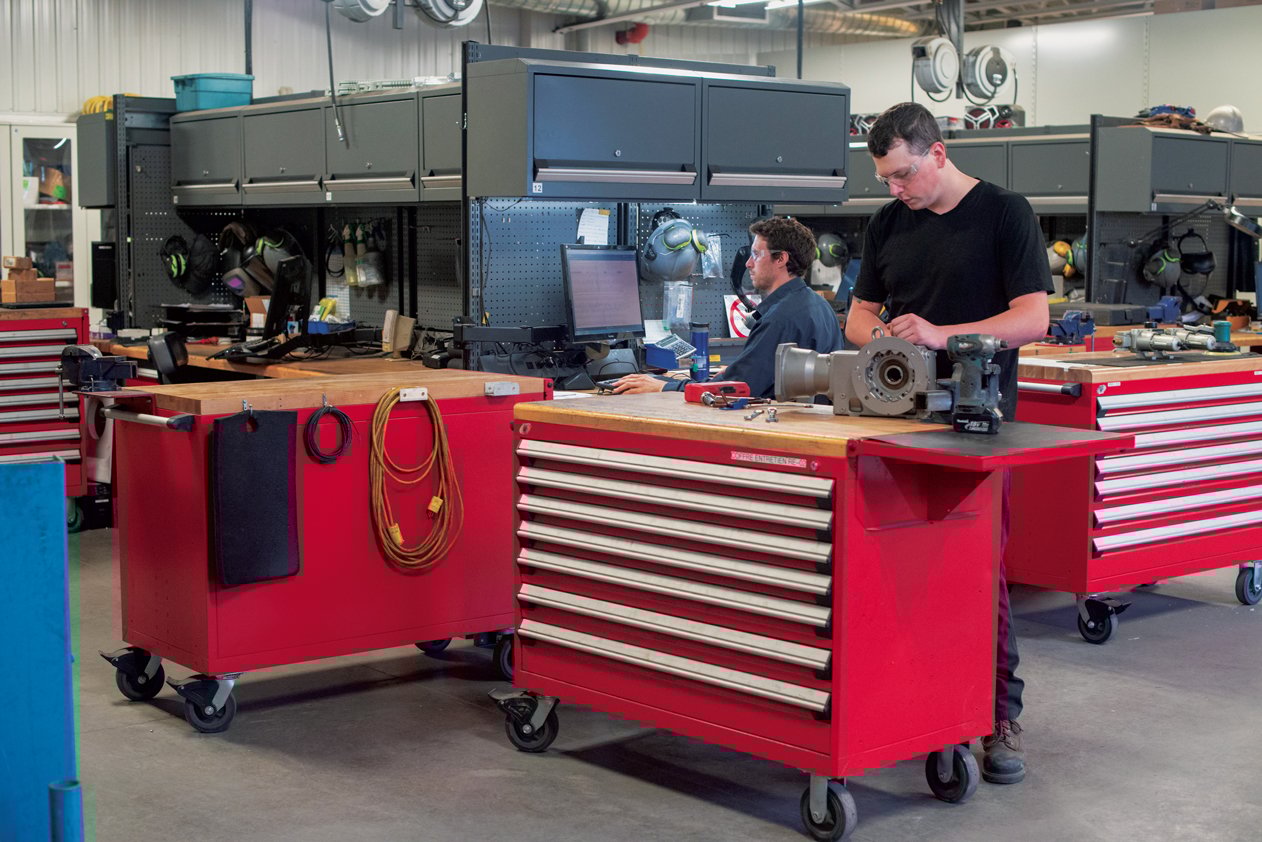

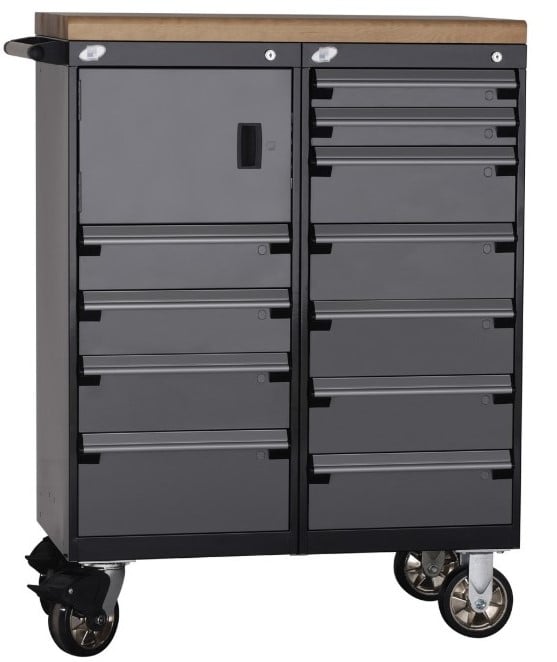

Mobile and Stationary Tool Cabinets

Choose from stationary or mobile options wheel your supplies right where you need them

APPLICATIONS:

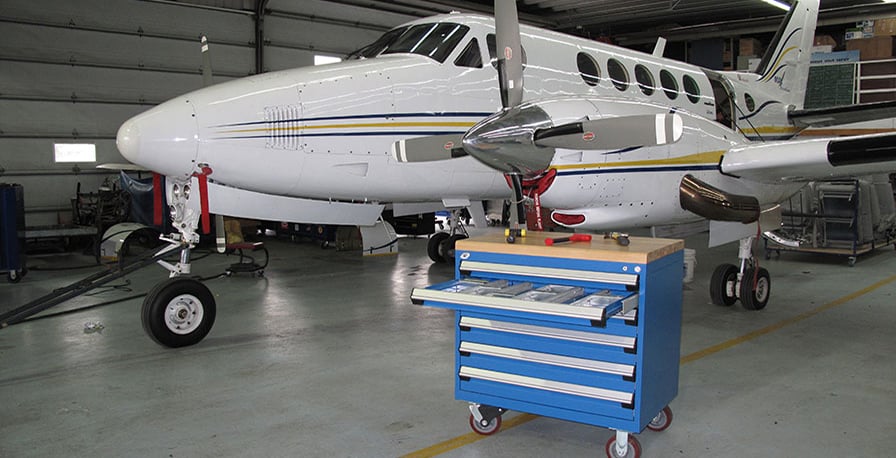

Aeronautics – Hangars and Manufacturing

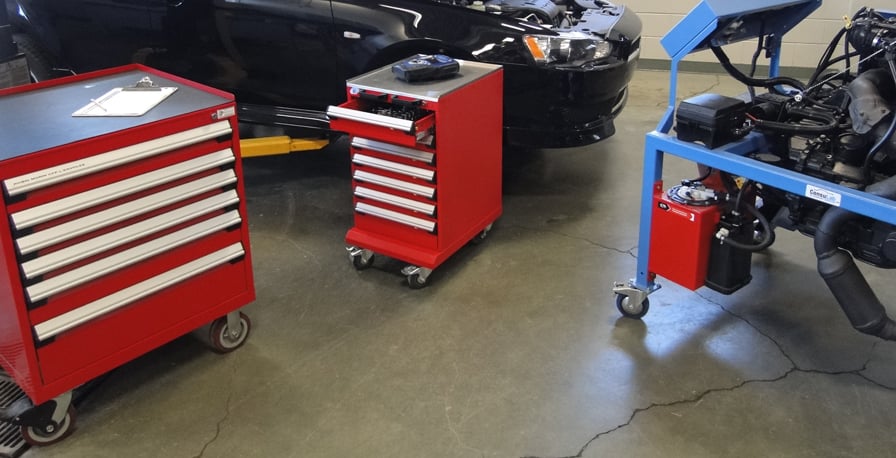

Automotive - Parts, Repair and Maintenance
Healthcare – Hospitals, Pharmacies
Electrical Engineering
Labs
Manufacturing

CABINET DIMENSIONS:

Heights in inches	28”, 30”, 34” 38”, 44” and 58”
Widths in inches	18”, 24”, 30”, 36”, 48”, 54” and 60”
Depths in inches	18”, 21”, 24” and 27”

Note: cabinets can be stationary or made mobile by adding casters

MODULAR DRAWER FEATURES:

400 lb capacity drawer, 100% extension
Lifetime warranty on drawer rolling mechanism
10 standard drawer heights: 3”, 4”, 5”, 6”, 7”, 8”, 9”, 10”, 12”, 14”• Drawers can be configured in multiple width/height variations
Central keyed lock or keyless electronic lock
“One drawer at a time” mechanism (only allows one-drawer to be opened at a time)
Integrated locking system (drawer handle lifts before drawer will open)

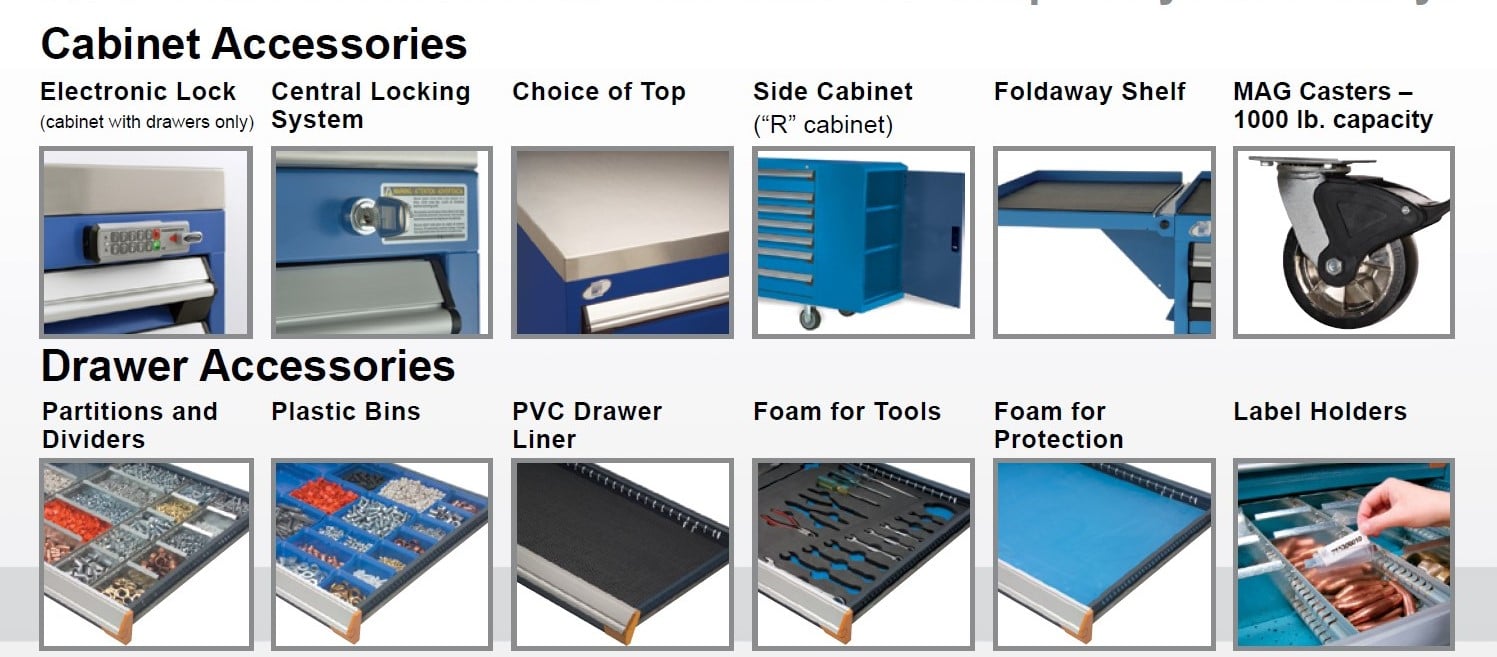

CABINET ACCESSORIES:

Partitions, dividers and plastic bins for drawers
Power feed panels for: air connections, USB ports, telephone jack and electrical outlets
Utility panels (perforated or louvered) with hooks, bins, tool holders, etc.
Front or side handles
Supports for laptop, tablet, monitor, keyboard and mouse
Corner bumpers for protection
Foam or PVC drawer liners
Foam for tools and collets
Optional 14” side cabinet
